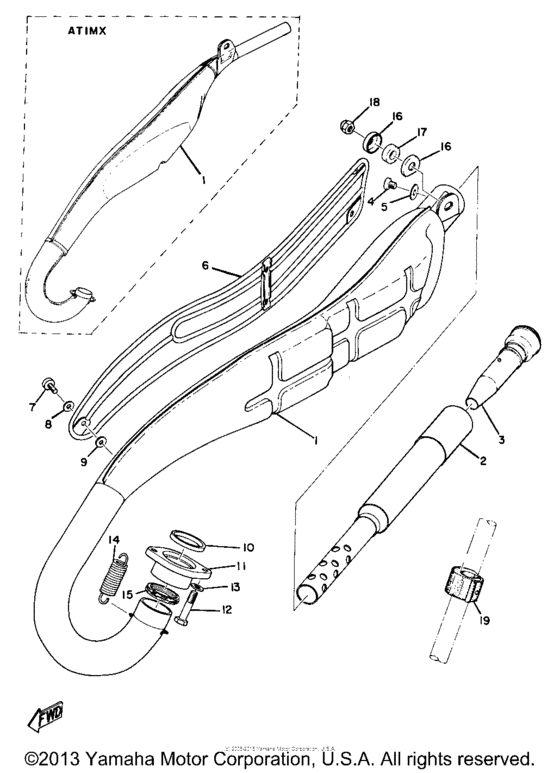

Exhaust Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
261-14610-30-00
Exhaust Pipe Assembly L
|
261-14610-30-00 |
— | ||
|
1
|
1
248-14610-70-00
Exhaust Pipe Assembly L
|
248-14610-70-00 |
— | ||
|
2
|
2
214-14753-01-00
Silencer, Exhaust
|
214-14753-01-00 |
— | ||
|
3
|
3
261-14752-30-00
Pipe, Outlet
|
261-14752-30-00 |
— | ||
|
4
|
4
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
4
|
4
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
6
|
6
248-14718-30-00
Protector, Muff 1
|
248-14718-30-00 |
— | ||
|
7
|
7
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
8
|
8
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
9
|
9
90202-05005-00 Washer, Plate |
90202-05005-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
902-02051-88-00 Washer, Plate |
902-02051-88-00 |
from US $1.70 |
||
|
10
|
10
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
10
|
10
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
11
|
11
248-14612-30-00
Nut, Ring
|
248-14612-30-00 |
— | ||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
90506-12029-00 Spring, Tension |
90506-12029-00 |
from US $5.38 |
||
|
15
|
15
248-14623-00-00
Gasket
|
248-14623-00-00 |
— | ||
| replacement | |||||
|
15
|
15
248-14623-10-00 Gasket |
248-14623-10-00 |
from US $7.37 |
||
|
16
|
16
248-14794-00-00
Plate, Muffler
|
248-14794-00-00 |
— | ||
|
17
|
17
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.84 |
||
|
18
|
18
95301-08900-00
Nut, Slotted
|
95301-08900-00 |
— | ||
| replacement | |||||
|
18
|
18
953-07089-00-00
Nut, Castle
|
953-07089-00-00 |
— | ||
|
19
|
19
248-14747-01-00
Damper, Muffler
|
248-14747-01-00 |
— | ||
|
19
|
19
248-00000-20-00
Gasket Kit At1
|
248-00000-20-00 |
— | ||
