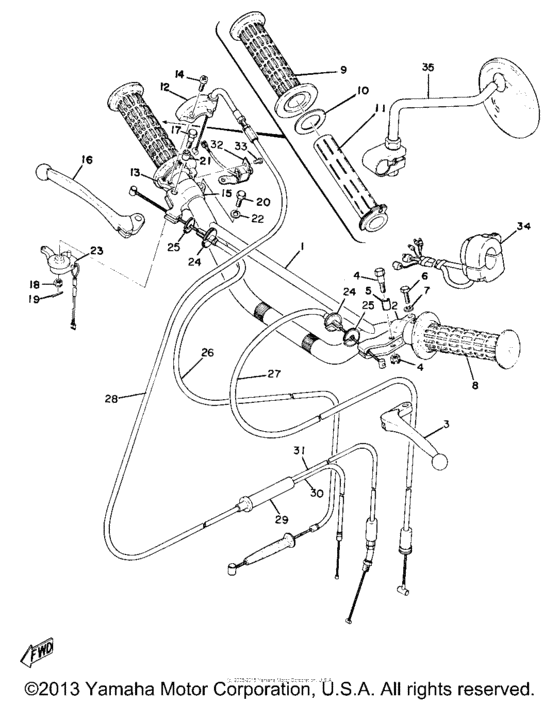

Handle & wire Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
214-82910-07-00
Lever Holder Assembly 1 (214-82
214-82 |
214-82910-07-00 |
— | ||
|
1
|
1
438-26111-00-00
Handlebar
|
438-26111-00-00 |
— | ||
|
2
|
2
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
2
|
2
233-82920-32-00
Lever Holder Assembly 2
|
233-82920-32-00 |
— | ||
|
2
|
2
233-82920-03-00
Lever Holder Assembly 2
|
233-82920-03-00 |
— | ||
|
3
|
3
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
4
|
4
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
4
|
4
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
5
|
5
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
6
|
6
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
6
|
6
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
214-26241-00-00
Grip Lh
LH |
214-26241-00-00 |
— | ||
|
9
|
9
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $13.46 |
||
|
9
|
9
214-26242-00-00
Grip Rh
RH |
214-26242-00-00 |
— | ||
|
10
|
10
150-26249-00-00
Ring, Leaf
|
150-26249-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
214-26243-00-00 Tube, Thrtl Guide |
214-26243-00-00 |
from US $15.54 |
||
|
12
|
12
214-26281-01-00
Cap, Grip Upper
|
214-26281-01-00 |
— | ||
|
13
|
13
248-26282-00-00
Cap, Grip Lower
|
248-26282-00-00 |
— | ||
|
14
|
14
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
15
|
15
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
16
|
16
233-83922-30-00 Lever RLever 2 |
233-83922-30-00 |
from US $14.37 |
||
|
17
|
17
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
17
|
17
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
17
|
17
90109-05197-00
Bolt (233-81915-01)
233-81915-01 |
90109-05197-00 |
— | ||
|
18
|
18
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
18
|
18
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
18
|
18
953-01059-00-00
Nut, Slotted
|
953-01059-00-00 |
— | ||
| replacement | |||||
|
18
|
18
953-07059-00-00
NUT(CROWN)
|
953-07059-00-00 |
— | ||
|
19
|
19
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
20
|
20
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
21
|
21
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
232-83980-30-00 Stop Switch Assembly |
232-83980-30-00 |
from US $52.78 |
||
|
24
|
24
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
24
|
24
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
25
|
25
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
25
|
25
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
26
|
26
248-26341-00-00
Cable, Brake
|
248-26341-00-00 |
— | ||
|
27
|
27
248-26335-00-00 Cable, clutch |
248-26335-00-00 |
from US $56.75 |
||
|
28
|
28
248-26311-01-00 Cable, Throttle 1 |
248-26311-01-00 |
US $36.81 |
||
|
29
|
29
214-26261-00-00 Connector, Cable |
214-26261-00-00 |
from US $9.21 |
||
|
30
|
30
248-26312-00-00
Cable, Throttle 2
|
248-26312-00-00 |
— | ||
|
31
|
31
248-26321-00-00
Cable, Pump
|
248-26321-00-00 |
— | ||
|
32
|
32
261-83976-00-00
Switch, Handle 1
|
261-83976-00-00 |
— | ||
|
33
|
33
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
34
|
34
233-83973-00-94
Switch, Handle 3 (3)
3 |
233-83973-00-94 |
— | ||
|
35
|
35
253-26290-00-00
Mirror Assembly
|
253-26290-00-00 |
— | ||
|
35
|
35
253-26290-10-00
Mirror Assembly Lh
LH |
253-26290-10-00 |
— | ||
