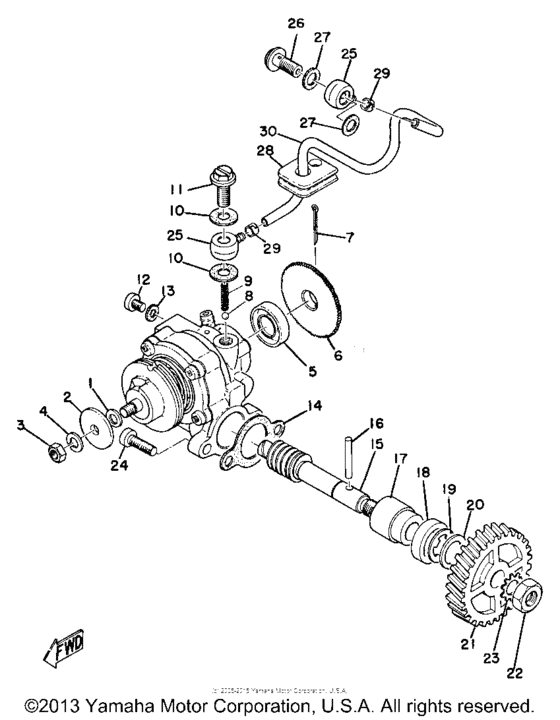

Oil pump Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 100
- Model
- AT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
137-13137-00-10 Shim (T=1.0) |
137-13137-00-10 |
from US $3.26 |
||
|
1
|
1
214-13101-04-00
Oil Pump Assembly
|
214-13101-04-00 |
— | ||
|
2
|
2
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
3
|
3
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
4
|
4
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
5
|
5
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $2.98 |
||
|
6
|
6
137-13128-00-00
Plate, Starter
|
137-13128-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
9
|
9
905-01020-17-00
Spring, Compression
|
905-01020-17-00 |
— | ||
|
10
|
10
90430-06011-00 GasketGasket (137-13167-00) |
90430-06011-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
11
|
11
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
12
|
12
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
12
|
12
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
13
|
13
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
14
|
14
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
14
|
14
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.70 |
||
|
15
|
15
214-13175-01-00
Shaft, Worm
|
214-13175-01-00 |
— | ||
|
16
|
16
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
17
|
17
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
17
|
17
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
18
|
18
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $2.32 |
||
|
19
|
19
93430-08007-00 Circlip, E-Type |
93430-08007-00 |
from US $1.66 |
||
|
20
|
20
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
21
|
21
248-13178-00-00 Gear, Pump Drive28T |
248-13178-00-00 |
from US $28.04 |
||
|
22
|
22
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
23
|
23
92901-08400-00 Washer,ex.tooth |
92901-08400-00 |
US $2.98 |
||
| replacement | |||||
|
23
|
23
92990-08400-00 Washer |
92990-08400-00 |
from US $2.98 |
||
|
24
|
24
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
24
|
24
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
25
|
25
214-13162-01-00 Banjo, Dlvry PipeBanjo,delivery pipe |
214-13162-01-00 |
from US $30.32 |
||
|
26
|
26
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
27
|
27
90430-06011-00 GasketGasket (137-13167-00) |
90430-06011-00 |
from US $3.26 |
||
| replacement | |||||
|
27
|
27
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
28
|
28
248-13174-00-00 Holder, Oil Pipe |
248-13174-00-00 |
from US $5.53 |
||
|
29
|
29
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
30
|
30
904-45053-01-00
Hose (L700)
|
904-45053-01-00 |
— | ||
| replacement | |||||
|
30
|
30
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
