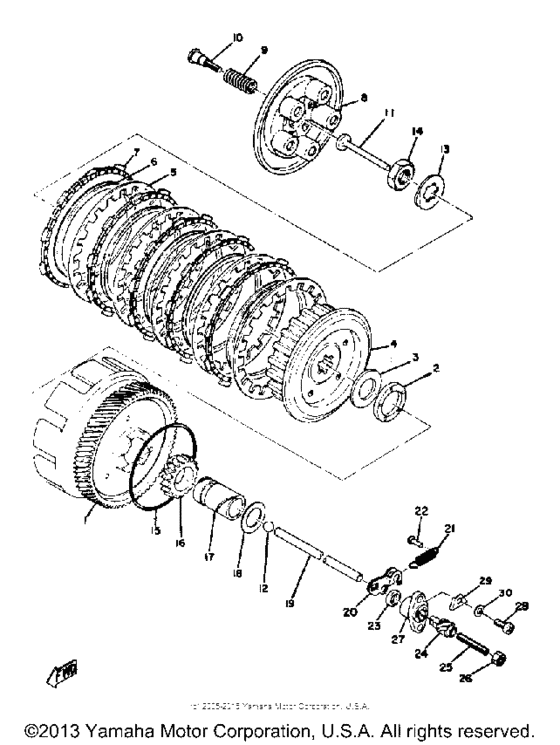

Clutch Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- AT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-16301-02-00
Clutch Assembly
|
248-16301-02-00 |
— | ||
|
1
|
1
248-16150-02-00
Pri Drvn Gear
|
248-16150-02-00 |
— | ||
|
2
|
2
933-41226-03-00
Bearing, Flat #41
#41 |
933-41226-03-00 |
— | ||
|
3
|
3
174-16154-00-00
Plate, Thrust 1
|
174-16154-00-00 |
— | ||
|
4
|
4
174-16371-01-00
Boss, Clutch
|
174-16371-01-00 |
— | ||
|
5
|
5
137-16324-00-00
Plate, Clutch 1
|
137-16324-00-00 |
— | ||
| replacements | |||||
|
5
|
5
336-16324-00-00 Plate, Clutch 1 |
336-16324-00-00 |
from US $7.94 |
||
|
5
|
5
336-16324-10-00 PLATE, CLUTCH 1 |
336-16324-10-00 |
from US $2 |
||
|
6
|
6
137-16367-00-00 Ring, Cushion |
137-16367-00-00 |
from US $11.33 |
||
|
7
|
7
132-16321-01-00 Plate, Friction |
132-16321-01-00 |
from US $24.37 |
||
| replacement | |||||
|
7
|
7
3HA-16321-00-00 Plate, Friction |
3HA-16321-00-00 |
from US $6.96 |
||
|
8
|
8
132-16351-00-00 Plate, Pressure 1 |
132-16351-00-00 |
from US $13.24 |
||
|
9
|
9
90501-20125-00 Spring, Compression |
90501-20125-00 |
from US $4.11 |
||
|
10
|
10
901-49051-47-00
Screw, Specl Shape
|
901-49051-47-00 |
— | ||
|
11
|
11
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $6.62 |
||
|
12
|
12
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
13
|
13
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
13
|
13
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
14
|
14
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
14
|
14
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
|
15
|
15
93210-85075-00 O-Ring |
93210-85075-00 |
from US $5.95 |
||
|
16
|
16
261-15631-01-00 Gear, Kick Pinion |
261-15631-01-00 |
US $119.34 |
||
|
17
|
17
903-87204-39-00
Collar (174-16181-00)
174-16181-00 |
903-87204-39-00 |
— | ||
|
18
|
18
248-16164-01-00
Plate, Thrust 2
|
248-16164-01-00 |
— | ||
|
19
|
19
248-16357-00-00
Rod, Push 2
|
248-16357-00-00 |
— | ||
|
20
|
20
241-16342-00-00 Lever, Push |
241-16342-00-00 |
from US $2 |
||
|
21
|
21
90506-10019-00 Spring, Tension (132-16345-00)132-16345-00 |
90506-10019-00 |
from US $2.41 |
||
|
22
|
22
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
23
|
23
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2 |
||
|
24
|
24
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
25
|
25
90113-06013-00 Bolt, Set |
90113-06013-00 |
from US $2.69 |
||
|
26
|
26
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
27
|
27
314-16396-01-00 Housing, Push Screw |
314-16396-01-00 |
from US $28.48 |
||
|
28
|
28
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
