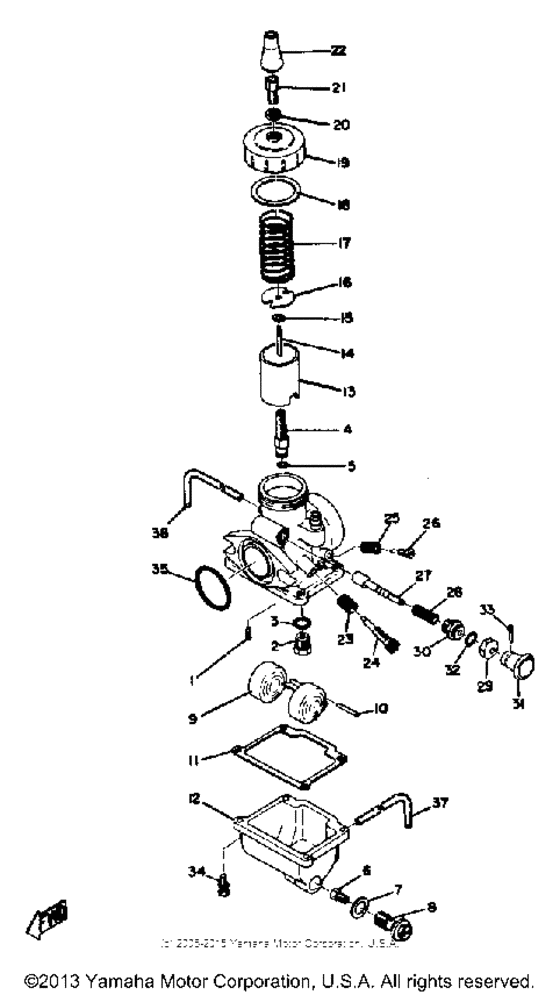

Carburetor Diagram Yamaha AT1/ AT2/ AT3
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 300
- Model
- AT3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
260-14142-25-00 Jet, Pilot# 25 |
260-14142-25-00 |
from US $10.46 |
||
|
1
|
1
260-14142-35-00 Jet, Pilot ( 35)35 |
260-14142-35-00 |
from US $11.29 |
||
|
1
|
1
316-14101-01-00
Carburetor Assembly 1
VM 24 SC |
316-14101-01-00 |
— | ||
|
1
|
1
314-14101-00-00
Carburetor Assembly 1
VM 24 SC |
314-14101-00-00 |
— | ||
|
2
|
2
23L-14107-25-00 Needle Valve Set |
23L-14107-25-00 |
from US $48.92 |
||
|
3
|
3
214-14195-00-00 Washer, Valve Seat |
214-14195-00-00 |
from US $2.66 |
||
|
4
|
4
304-14141-36-00
Nozzle, Main
|
304-14141-36-00 |
— | ||
|
4
|
4
314-14141-36-00
Nozzle, Main 001
001 044~AT3 |
314-14141-36-00 |
— | ||
|
5
|
5
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
6
|
6
137-14143-40-A1 Jet, Main #200 |
137-14143-40-A1 |
from US $8.94 |
||
|
6
|
6
137-14143-46-A1 Jet, Main (#230)044~AT3118161~CT3 |
137-14143-46-A1 |
from US $12.80 |
||
|
7
|
7
304-14198-00-00 Gasket |
304-14198-00-00 |
from US $8.78 |
||
|
8
|
8
248-14166-00-00
Bolt, Banjo
|
248-14166-00-00 |
— | ||
| replacement | |||||
|
8
|
8
479-14166-00-00
Bolt, Banjo
|
479-14166-00-00 |
— | ||
|
9
|
9
314-14185-00-00 Float |
314-14185-00-00 |
from US $75.33 |
||
|
10
|
10
371-27442-01-00
Bracket 2
IN PRICE BOOK |
371-27442-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
IN PRICE BOOK |
999-99999-99-00 |
— | ||
|
11
|
11
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
12
|
12
314-14181-08-00
Body, Float Chmbr 1
|
314-14181-08-00 |
— | ||
|
13
|
13
314-14112-15-00 Valve, Throttle 1 |
314-14112-15-00 |
from US $87.73 |
||
|
13
|
13
314-14112-20-00 Valve, Throttle 1 |
314-14112-20-00 |
from US $87.37 |
||
|
13
|
13
314-14112-25-00 Valve, Throttle 1 |
314-14112-25-00 |
from US $53.10 |
||
|
14
|
14
152-14116-10-00 Needle |
152-14116-10-00 |
from US $20.23 |
||
|
14
|
14
18L-1490J-00-00 Needle |
18L-1490J-00-00 |
from US $22.53 |
||
|
14
|
14
166-14116-13-00 Needle |
166-14116-13-00 |
from US $12.80 |
||
|
14
|
14
316-14116-03-00
Needle 001
001 044~AT3 |
316-14116-03-00 |
— | ||
|
15
|
15
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
15
|
15
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
16
|
16
246-14132-00-00
Stopper, Cable
|
246-14132-00-00 |
— | ||
|
17
|
17
248-14131-00-00 Spring, Throttle Valve |
248-14131-00-00 |
from US $10.46 |
||
|
18
|
18
246-14126-00-00 Gasket |
246-14126-00-00 |
from US $5.81 |
||
|
19
|
19
802-14158-00-00
Top, Mixing Chamber
|
802-14158-00-00 |
— | ||
|
20
|
20
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
21
|
21
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
22
|
22
802-14169-00-00 Cap |
802-14169-00-00 |
from US $5.81 |
||
| replacement | |||||
|
22
|
22
8A7-14169-00-00 Cap |
8A7-14169-00-00 |
from US $5.81 |
||
|
23
|
23
137-14133-00-00 Spring, Throttle Stop |
137-14133-00-00 |
from US $5.10 |
||
|
24
|
24
23X-14103-00-00 Throttle Screw Set |
23X-14103-00-00 |
from US $31.17 |
||
|
25
|
25
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
26
|
26
22K-14104-00-00 Air Screw Set |
22K-14104-00-00 |
from US $12.13 |
||
|
27
|
27
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
28
|
28
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
29
|
29
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
30
|
30
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
31
|
31
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
32
|
32
152-14138-00-00
Clip, Plunger
|
152-14138-00-00 |
— | ||
|
33
|
33
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
34
|
34
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
34
|
34
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
35
|
35
248-14147-00-00 O-Ring |
248-14147-00-00 |
from US $10.76 |
||
|
36
|
36
183-14197-01-00 Pipe, Airvent |
183-14197-01-00 |
from US $18.56 |
||
|
37
|
37
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
