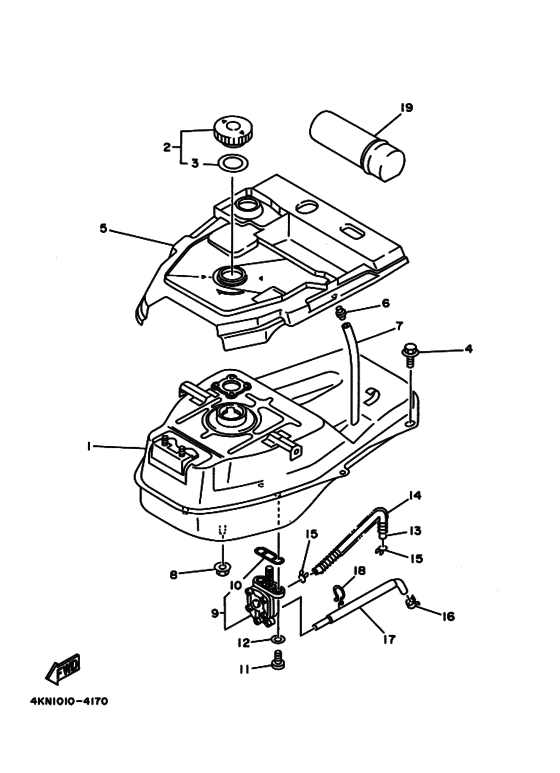

Fuel tank Diagram Yamaha BA50 Gear
- Year
- 1994
- Colour
- Light Gray Solid 4 (LNS4; 0492)
- Model code
- 4KN1
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- BA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-24110-10-00
Fuel Tank Comp
フユエルタンクコンプリート; |
4KN-24110-10-00 |
— | ||
|
2
|
2
22F-24610-10-00 Cap Assembly |
22F-24610-10-00 |
from US $18.70 |
||
|
3
|
3
3T5-24612-10-00 Packing, Cap．ガスケツト，キヤツプ; |
3T5-24612-10-00 |
from US $9.63 |
||
| replacement | |||||
|
3
|
3
3T5-24612-20-00 Packing, Cap．ガスケツト，キヤツプ; |
3T5-24612-20-00 |
from US $7.64 |
||
|
4
|
4
958-27080-12-00 Bolt, Flangeボルト，フランジ; |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flangeボルト，フランジ; |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
4KN-2414A-00-00
Cover, Filler
カバー，フイラー; |
4KN-2414A-00-00 |
— | ||
|
6
|
6
4JP-21753-00-00 Boss, Connector |
4JP-21753-00-00 |
from US $1.98 |
||
|
7
|
7
91A21-07045-00 Tube, Flexibleチユーブ，フレキシブル; |
91A21-07045-00 |
US $7.51 |
||
|
8
|
8
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
9
|
9
3VP-24500-00-00 Fuel Cock Assembly 1 |
3VP-24500-00-00 |
from US $53.33 |
||
|
10
|
10
4X8-24512-00-00 O-Ring．ガスケツト; |
4X8-24512-00-00 |
from US $1.84 |
||
|
11
|
11
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
12
|
12
902-02051-87-00 Washer, Plateワツシヤ，プレート; |
902-02051-87-00 |
from US $1.28 |
||
|
13
|
13
4KN-24311-00-00 Pipe, Fuel 1 |
4KN-24311-00-00 |
US $9.92 |
||
| replacement | |||||
|
13
|
13
4KN-24311-01-00 Pipe, Fuel 1 |
4KN-24311-01-00 |
from US $9.92 |
||
|
14
|
14
90501-08668-00 Spring, Compression |
90501-08668-00 |
from US $4.53 |
||
|
15
|
15
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
15
|
15
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
16
|
16
90467-07093-00 Clip |
90467-07093-00 |
from US $1.70 |
||
|
17
|
17
4KN-2416A-00-00
Hose
ホース; 参照 |
4KN-2416A-00-00 |
— | ||
|
18
|
18
90464-18116-00 Clamp参照 |
90464-18116-00 |
from US $2.09 |
||
|
19
|
19
4KN-24870-00-00 Box, Document参照 |
4KN-24870-00-00 |
US $32.30 |
||
