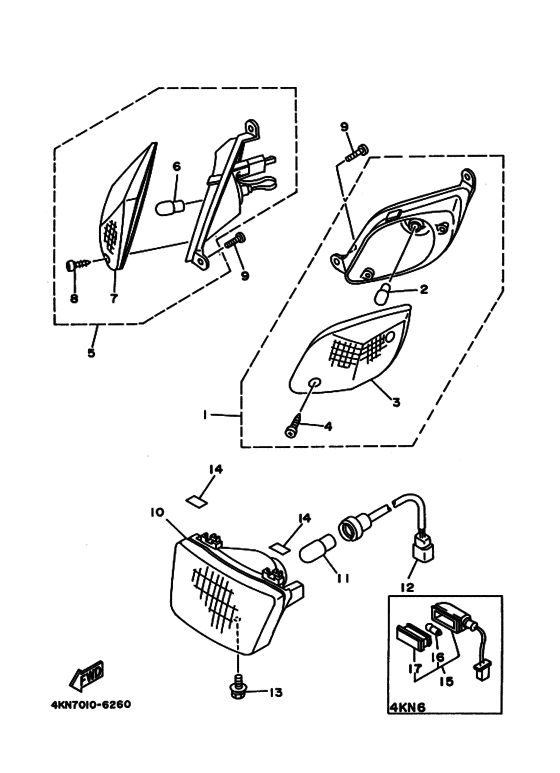

ﾌﾗﾂｼﾔﾗｲﾄ. ﾍﾂﾄﾞﾗｲﾄ Diagram Yamaha BA50 Gear
- Year
- 1994
- Colour
- Light Gray Solid 4 (LNS4; 0492)
- Model code
- 4KN1
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- BA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-83310-00-00 Front Flasher Light Assy 1 |
4KN-83310-00-00 |
US $53.19 |
||
|
2
|
2
4KN-83311-00-00 Bulb, Flasher (12V-10W)．バルブ，フラツシヤ; |
4KN-83311-00-00 |
US $3.97 |
||
|
3
|
3
4KN-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
4KN-83312-00-00 |
US $9.85 |
||
|
4
|
4
97707-40616-00 Screw, Tapping．スクリユ，タツピング; |
97707-40616-00 |
from US $1.42 |
||
|
5
|
5
4KN-83320-00-00 Front Flasher Light Assy 2 |
4KN-83320-00-00 |
US $53.19 |
||
|
6
|
6
4KN-83311-00-00 Bulb, Flasher (12V-10W)．バルブ，フラツシヤ; |
4KN-83311-00-00 |
US $3.97 |
||
|
7
|
7
4KN-83322-00-00 Lens, Flasher 2．レンズ，フラツシヤ ２; |
4KN-83322-00-00 |
US $13.60 |
||
|
8
|
8
97707-40616-00 Screw, Tapping．スクリユ，タツピング; |
97707-40616-00 |
from US $1.42 |
||
|
9
|
9
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
10
|
10
4KN-84320-00-00 Lens Assy |
4KN-84320-00-00 |
US $118.54 |
||
|
11
|
11
3NS-84314-00-00 Bulb, Head Light (12V-30/30W)バルブ， ヘツドライト; １２Ｖ−３０／３０Ｗ |
3NS-84314-00-00 |
US $17 |
||
|
12
|
12
4KN-84312-00-00 Cord Assyホルダ，ソケツト; |
4KN-84312-00-00 |
US $51.95 |
||
|
13
|
13
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
