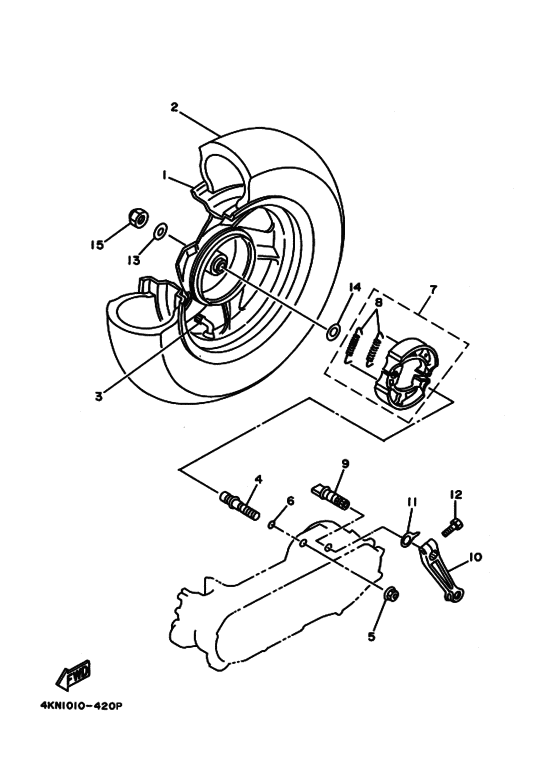

Rear wheel Diagram Yamaha BA50 Gear
- Year
- 1994
- Colour
- Light Gray Solid 4 (LNS4; 0492)
- Model code
- 4KN1
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- BA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-25338-00-WG
Cast Wheel, Rear
キヤストホイール，リヤ; ハイテツク シルバー |
4KN-25338-00-WG |
— | ||
|
3
|
3
939-00000-41-00 Valve, Rimバルブ，リム; |
939-00000-41-00 |
from US $15.30 |
||
|
4
|
4
3AA-25326-00-00
Pin, Pivot
|
3AA-25326-00-00 |
— | ||
|
5
|
5
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
6
|
6
93210-07540-00 O-RingＯ−リング; |
93210-07540-00 |
from US $1.56 |
||
|
7
|
7
4KN-W2536-11-00 Brake Shoe Kitブレーキシユーセツト; 参照 |
4KN-W2536-11-00 |
from US $23.89 |
||
| replacement | |||||
|
7
|
7
4KN-W253E-11-00 Brake Shoe Kitブレーキシユーセツト; 参照 |
4KN-W253E-11-00 |
from US $28.08 |
||
|
8
|
8
90506-15260-00 Spring, Tension参照 |
90506-15260-00 |
from US $1.35 |
||
|
9
|
9
3AA-25351-00-00 Camshaft |
3AA-25351-00-00 |
US $28.19 |
||
|
10
|
10
3AA-25355-03-00 Lever, Camshaftレバー，カムシヤフト; |
3AA-25355-03-00 |
US $37.84 |
||
| replacement | |||||
|
10
|
10
3VL-F5355-00-00
Lever, Camshaft
レバー，カムシヤフト; |
3VL-F5355-00-00 |
— | ||
|
11
|
11
3Y6-2533A-01-00 Plate, Indicatorプレート，インジケータ; |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
11
|
11
5AD-F533A-00-00
Plate, Indicator
プレート，インジケータ; |
5AD-F533A-00-00 |
— | ||
|
12
|
12
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
13
|
13
90201-142M6-00 Washer, Plateワツシヤ，プレート; |
90201-142M6-00 |
from US $3.68 |
||
|
14
|
14
90201-17255-00 Washer, Plateワツシヤ，プレート; |
90201-17255-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90201-177G4-00 Washer, Plateワツシヤ，プレート; |
90201-177G4-00 |
from US $1.70 |
||
|
15
|
15
90185-14150-00 Nut, Self-Locking(3Fc) |
90185-14150-00 |
from US $9.49 |
||
| replacement | |||||
|
15
|
15
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
