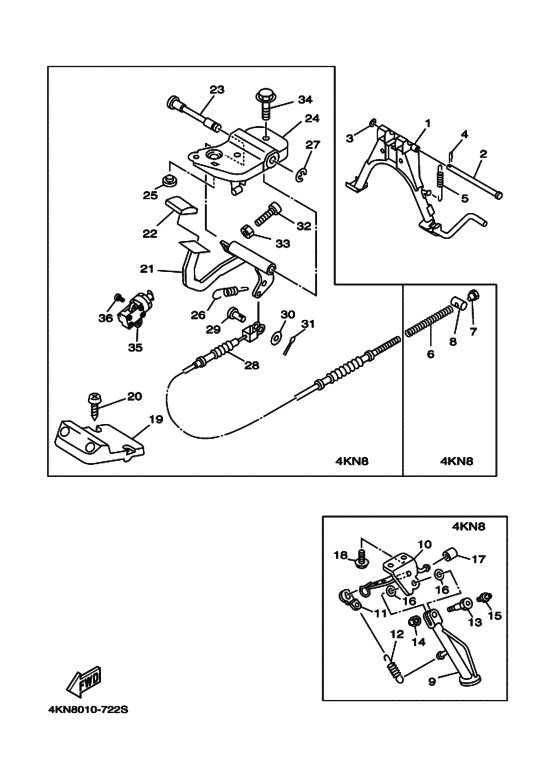

ｽﾀﾝﾄﾞ. ﾌｰﾄﾚｽﾄ 1 (4KN8) Diagram Yamaha BA50 Gear
- Year
- 1997
- Colour
- Light Gray Solid 4 (LNS4; 0492)
- Model code
- 4KN8
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- BA50N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KN-27111-00-00 Stand, Main |
4KN-27111-00-00 |
US $85.76 |
||
|
2
|
2
90240-10139-00 Pin, Clevisピン，クレビス; |
90240-10139-00 |
US $10.77 |
||
|
3
|
3
90202-10120-00 Washer, Plateワツシヤ，プレート; |
90202-10120-00 |
from US $1.94 |
||
|
4
|
4
90468-12006-00 Clip |
90468-12006-00 |
from US $1.80 |
||
|
5
|
5
4KN-27116-00-00 Spring, Main Stand |
4KN-27116-00-00 |
from US $5.72 |
||
|
6
|
6
90501-165J7-00 Spring, Compression |
90501-165J7-00 |
from US $0.95 |
||
|
7
|
7
90179-06411-00 Nut |
90179-06411-00 |
from US $1.43 |
||
|
8
|
8
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.50 |
||
|
9
|
9
4KN-27311-10-00
Stand, Side
スタンド，サイド; |
4KN-27311-10-00 |
— | ||
|
10
|
10
4KN-27321-10-00
Bracket, Side Stand
|
4KN-27321-10-00 |
— | ||
|
11
|
11
4KN-27315-10-00 Link, Side Stand |
4KN-27315-10-00 |
US $15.26 |
||
|
12
|
12
90506-23501-00
Spring, Tension
|
90506-23501-00 |
— | ||
|
13
|
13
90109-107F7-00 Bolt |
90109-107F7-00 |
US $26.03 |
||
|
14
|
14
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $3.59 |
||
|
15
|
15
93700-06011-00 Nipple, Greaseニツプル，グリース; |
93700-06011-00 |
US $3.74 |
||
|
16
|
16
90201-130U7-00 Washer, Plateワツシヤ，プレート; |
90201-130U7-00 |
from US $2.74 |
||
|
17
|
17
3VR-27114-00-00 Stopper, Main Stand |
3VR-27114-00-00 |
from US $1.87 |
||
|
18
|
18
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $0.90 |
||
|
19
|
19
4KN-27411-00-00 Footrest 1フートレスト １; |
4KN-27411-00-00 |
US $52.20 |
||
|
20
|
20
97707-60020-00 Screw, Tappingスクリユ，タツピング; |
97707-60020-00 |
from US $0.74 |
||
|
21
|
21
4KN-27211-00-00 Pedal, Brakeペダル，ブレーキ; |
4KN-27211-00-00 |
US $62.23 |
||
|
22
|
22
50W-27285-00-00 Cap |
50W-27285-00-00 |
from US $6.58 |
||
| replacement | |||||
|
22
|
22
10B-F7285-00-00 Cap |
10B-F7285-00-00 |
from US $6.58 |
||
|
23
|
23
25G-27212-00-00 Shaft, Brake Pedalシヤフト，ブレーキペダル; |
25G-27212-00-00 |
from US $10.37 |
||
|
24
|
24
4KN-27263-00-00 Bracket 1 |
4KN-27263-00-00 |
US $97.53 |
||
|
25
|
25
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.34 |
||
|
26
|
26
90506-12441-00 Spring, Tension |
90506-12441-00 |
from US $3.29 |
||
|
27
|
27
99080-09600-00 Circlip (E) (99001-09600-00)サークリツプ; |
99080-09600-00 |
from US $1.50 |
||
|
28
|
28
4KN-26373-00-00 Cable, Brake 4ケーブル，ブレーキ ４; |
4KN-26373-00-00 |
US $79.03 |
||
|
29
|
29
90240-06108-00 Pin, Clevis |
90240-06108-00 |
from US $1.65 |
||
|
30
|
30
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $0.90 |
||
|
31
|
31
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $0.98 |
||
| replacements | |||||
|
31
|
31
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $0.98 |
||
|
31
|
31
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
32
|
32
90149-06131-00 Screw |
90149-06131-00 |
from US $1.65 |
||
|
33
|
33
90170-06010-00 Nut |
90170-06010-00 |
from US $1.80 |
||
|
34
|
34
95807-10020-00 Bolt, Flange |
95807-10020-00 |
from US $0.90 |
||
| replacement | |||||
|
34
|
34
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $0.90 |
||
|
35
|
35
4KN-82566-10-00 Switch, Side Stand |
4KN-82566-10-00 |
US $65.83 |
||
|
36
|
36
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
36
|
36
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.43 |
||
