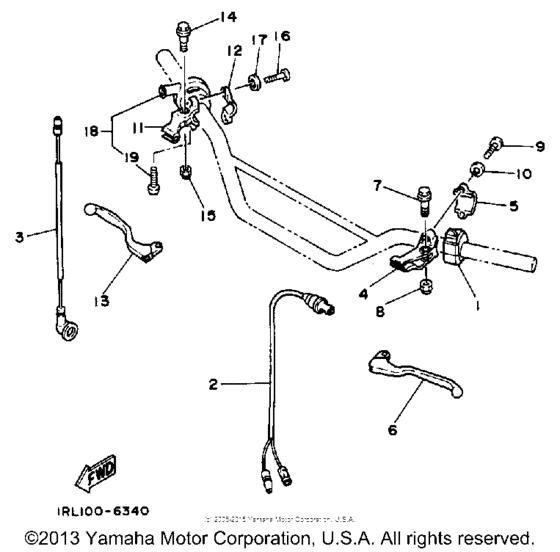

Handle switch & lever Diagram Yamaha BW200 Big Wheel
- Year
- 1988
- Sales region
- USA
- Engine Capacity
- 200
- Model
- BW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RL-83973-09-00
Switch, Handle 3
|
1RL-83973-09-00 |
— | ||
|
2
|
2
2FH-83980-00-00 Front Stop Switch Assy |
2FH-83980-00-00 |
from US $48.20 |
||
| replacements | |||||
|
2
|
2
1YW-83980-00-00 Front Stop Switch Assy |
1YW-83980-00-00 |
from US $60.38 |
||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
2JX-82541-00-00 Wire, Lead |
2JX-82541-00-00 |
US $19.87 |
||
|
4
|
4
1RL-82911-00-00 Holder,lever 1 |
1RL-82911-00-00 |
from US $49.32 |
||
| replacement | |||||
|
4
|
4
999-99030-34-00 Holder Set, Lever 1 |
999-99030-34-00 |
from US $37.72 |
||
|
5
|
5
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
6
|
6
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
6
|
6
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
7
|
7
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
7
|
7
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
8
|
8
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
9
|
9
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
10
|
10
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
11
|
11
38V-82921-00-00 Holder, Lever 2 |
38V-82921-00-00 |
from US $24.23 |
||
|
12
|
12
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
13
|
13
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
13
|
13
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
14
|
14
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
14
|
14
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
15
|
15
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
16
|
16
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
17
|
17
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
18
|
18
1RL-26270-00-00 Cble Conct Cap Assemblycap Asse |
1RL-26270-00-00 |
US $32.27 |
||
|
19
|
19
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
