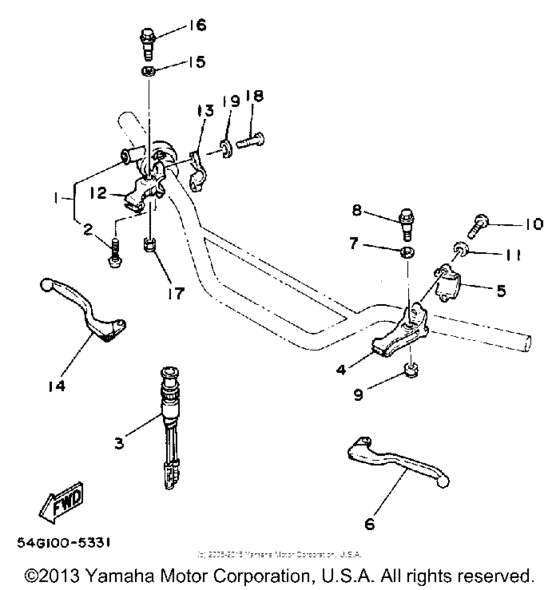

Handle switch & lever Diagram Yamaha BW200 Big Wheel
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 200
- Model
- BW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1R6-83976-01-00 Switch, Handle 1 |
1R6-83976-01-00 |
from US $28.62 |
||
|
2
|
2
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
2
|
2
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
3
|
3
4V5-82520-00-00
Light Switch Assembly
|
4V5-82520-00-00 |
— | ||
|
4
|
4
5F6-82911-00-00
Holder, Lever 1
|
5F6-82911-00-00 |
— | ||
|
5
|
5
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
6
|
6
23X-38912-00-00
New Genuine Part
IN PRICE BOOK |
23X-38912-00-00 |
— | ||
|
7
|
7
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
8
|
8
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
8
|
8
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
9
|
9
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
11
|
11
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
12
|
12
38V-82921-00-00 Holder, Lever 2 |
38V-82921-00-00 |
from US $24.23 |
||
|
13
|
13
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
14
|
14
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
14
|
14
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $20.54 |
||
|
15
|
15
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
16
|
16
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
16
|
16
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
17
|
17
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
18
|
18
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
19
|
19
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
