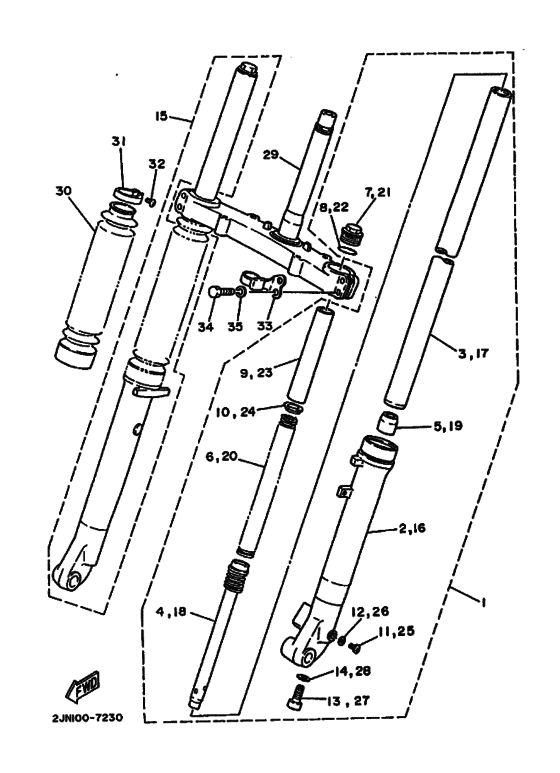

Front fork Diagram Yamaha BW350 Big Wheel
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2JN0
- Sales region
- Europe (020)
- Engine Capacity
- 350
- Color Variant
- A
- Model
- BW350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JN-23102-00-00
Front Fork Assembly L
|
2JN-23102-00-00 |
— | ||
|
2
|
2
2JN-23126-00-00
Tube, Outer 1
|
2JN-23126-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2JN-23126-00-35
Tube, Outer 1
|
2JN-23126-00-35 |
— | ||
|
3
|
3
2JN-23110-00-00
Inner Tube Comp. 1
|
2JN-23110-00-00 |
— | ||
|
4
|
4
2JN-23170-00-00
Cylinder Comp., Front Fork
|
2JN-23170-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
6
|
6
2JN-23141-00-00
Spring, Front Fork
|
2JN-23141-00-00 |
— | ||
|
7
|
7
2JN-23111-00-00 Bolt, Cap |
2JN-23111-00-00 |
from US $33.72 |
||
|
8
|
8
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
9
|
9
5N8-23118-00-00 Inactive Part Number |
5N8-23118-00-00 |
from US $6.59 |
||
|
10
|
10
583-23142-M0-00 Seat, Spring Upper |
583-23142-M0-00 |
US $14.65 |
||
| replacement | |||||
|
10
|
10
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
11
|
11
122-23119-01-00 Plug, Drain |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
11
|
11
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
12
|
12
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
13
|
13
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
13
|
13
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
2JN-23103-00-00
Front Fork Assembly R
|
2JN-23103-00-00 |
— | ||
|
16
|
16
2JN-23136-00-00
Tube, Outer 2
|
2JN-23136-00-00 |
— | ||
| replacement | |||||
|
16
|
16
2JN-23136-00-35
Tube, Outer 2
|
2JN-23136-00-35 |
— | ||
|
17
|
17
2JN-23110-00-00
Inner Tube Comp. 1
|
2JN-23110-00-00 |
— | ||
|
18
|
18
2JN-23170-00-00
Cylinder Comp., Front Fork
|
2JN-23170-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
20
|
20
2JN-23141-00-00
Spring, Front Fork
|
2JN-23141-00-00 |
— | ||
|
21
|
21
2JN-23111-00-00 Bolt, Cap |
2JN-23111-00-00 |
from US $33.72 |
||
|
22
|
22
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
23
|
23
5N8-23118-00-00 Inactive Part Number |
5N8-23118-00-00 |
from US $6.59 |
||
|
24
|
24
583-23142-M0-00 Seat, Spring Upper |
583-23142-M0-00 |
US $14.65 |
||
| replacement | |||||
|
24
|
24
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
25
|
25
122-23119-01-00 Plug, Drain |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
25
|
25
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
25
|
25
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
26
|
26
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
27
|
27
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
27
|
27
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
28
|
28
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
29
|
29
2JN-23340-00-98
Under Bracket Comp
LOW GLOSS BLACK |
2JN-23340-00-98 |
— | ||
|
30
|
30
54G-23191-00-00
Boot
|
54G-23191-00-00 |
— | ||
|
31
|
31
2K5-23192-00-00 Band |
2K5-23192-00-00 |
from US $13.18 |
||
|
32
|
32
1W4-23194-L0-00 Screw, Boot Band |
1W4-23194-L0-00 |
from US $4.53 |
||
|
33
|
33
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
34
|
34
97321-08035-00 Bolt |
97321-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
34
|
34
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
