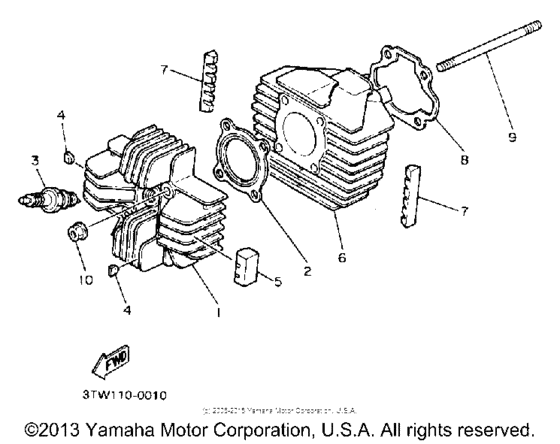

Cylinder Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21W-11111-00-00 Head, Cylinder 1 |
21W-11111-00-00 |
US $185.29 |
||
|
2
|
2
1W7-11181-00-00 Gasket, Cylinder Head 1 |
1W7-11181-00-00 |
from US $8.60 |
||
|
3
|
3
NGK-BP7HS-00-00 Ngk Bp7Hs 10Pk10PK UR |
NGK-BP7HS-00-00 |
US $4.23 |
||
| replacements | |||||
|
3
|
3
BP7-HS000-40-00 "3/8"" X 15 DOCK LINE"10PK UR |
BP7-HS000-40-00 |
US $6.91 |
||
|
3
|
3
BPR-7HS00-00-00 BPR7HS NGK S-PLUG 110PK UR |
BPR-7HS00-00-00 |
from US $5.92 |
||
|
4
|
4
463-11161-01-00 Absorber 1 |
463-11161-01-00 |
from US $3.12 |
||
|
5
|
5
21W-11162-00-00 Absorber 2 |
21W-11162-00-00 |
from US $7.79 |
||
|
6
|
6
3E5-11311-01-00
Cylinder 1
|
3E5-11311-01-00 |
— | ||
| replacement | |||||
|
6
|
6
18E-11311-00-00
Cylinder 1
|
18E-11311-00-00 |
— | ||
|
7
|
7
3E5-11162-00-00 Absorber 2 |
3E5-11162-00-00 |
from US $2.70 |
||
|
8
|
8
4AW-11351-00-00 Gasket, Cylinder |
4AW-11351-00-00 |
from US $4.99 |
||
|
9
|
9
90116-07035-00 Bolt, Stud |
90116-07035-00 |
from US $7.08 |
||
|
10
|
10
90179-07381-00 Nut |
90179-07381-00 |
from US $2.50 |
||
| replacement | |||||
|
10
|
10
90179-07521-00 Nut(3Fr)Nut, pop |
90179-07521-00 |
from US $4.72 |
||
