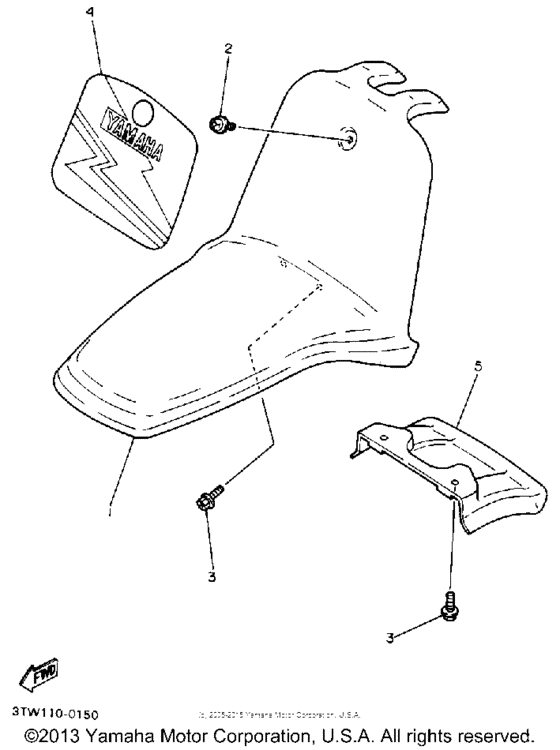

Front fender Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RY-21511-00-00
Fender, Front
|
1RY-21511-00-00 |
— | ||
|
2
|
2
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
2
|
2
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
3
|
3
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
3
|
3
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
3
|
3
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
|
4
|
4
3TW-21569-00-00
Graphic 1
|
3TW-21569-00-00 |
— | ||
|
5
|
5
36R-21521-00-00
Flap, Front Fender
|
36R-21521-00-00 |
— | ||
