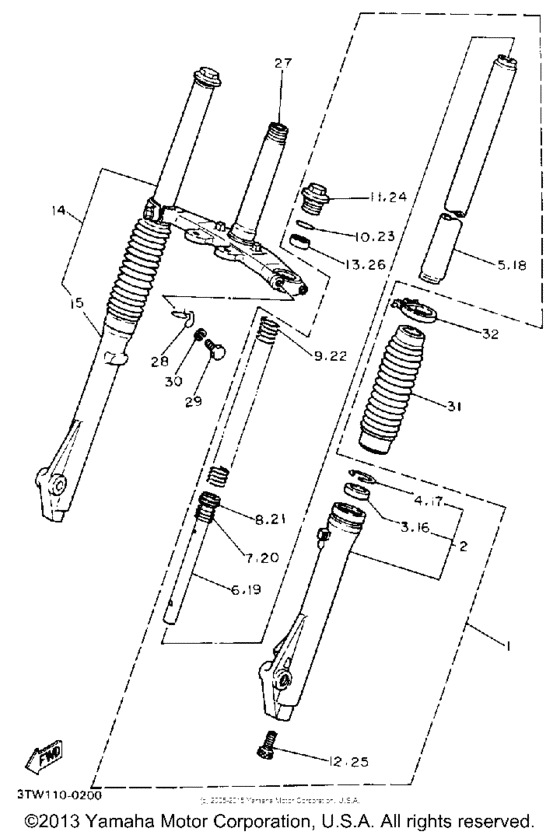

Front fork Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RY-23102-00-NJ
Front Fork Assembly Lh (L.h.)
LH L.H. FARAWAY BLUE |
1RY-23102-00-NJ |
— | ||
|
2
|
2
1RY-23106-00-NJ
Outer Tube Comp.lh (L.h.)
|
1RY-23106-00-NJ |
— | ||
|
3
|
3
1RY-23145-00-00 Oil Seal |
1RY-23145-00-00 |
from US $18.18 |
||
|
4
|
4
3M7-23156-00-00 Ring, Snap |
3M7-23156-00-00 |
from US $4.68 |
||
|
5
|
5
1RY-23110-00-00
Inner Tube 1
|
1RY-23110-00-00 |
— | ||
|
6
|
6
1RY-23170-00-00 Cylinder.comp.fr.fork |
1RY-23170-00-00 |
US $13.01 |
||
|
7
|
7
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
8
|
8
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
9
|
9
1RY-23141-00-00
Spring, Front Fork
|
1RY-23141-00-00 |
— | ||
|
10
|
10
2J5-23147-00-00 O-Ring |
2J5-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
11
|
11
3M7-23111-01-00 Bolt, Cap |
3M7-23111-01-00 |
from US $33.58 |
||
|
12
|
12
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
13
|
13
3M7-23142-00-00 Seat, Spring Upper |
3M7-23142-00-00 |
from US $8.08 |
||
|
14
|
14
1RY-23103-00-NJ Fr.fork Assembly.rh (R.h.) |
1RY-23103-00-NJ |
US $288 |
||
|
15
|
15
1RY-23107-00-NJ
Outer Tube Comp.rh (R.h.)
|
1RY-23107-00-NJ |
— | ||
|
16
|
16
1RY-23145-00-00 Oil Seal |
1RY-23145-00-00 |
from US $18.18 |
||
|
17
|
17
3M7-23156-00-00 Ring, Snap |
3M7-23156-00-00 |
from US $4.68 |
||
|
18
|
18
1RY-23110-00-00
Inner Tube 1
|
1RY-23110-00-00 |
— | ||
|
19
|
19
1RY-23170-00-00 Cylinder.comp.fr.fork |
1RY-23170-00-00 |
US $13.01 |
||
|
20
|
20
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
21
|
21
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
22
|
22
1RY-23141-00-00
Spring, Front Fork
|
1RY-23141-00-00 |
— | ||
|
23
|
23
2J5-23147-00-00 O-Ring |
2J5-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
24
|
24
3M7-23111-01-00 Bolt, Cap |
3M7-23111-01-00 |
from US $33.58 |
||
|
25
|
25
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
26
|
26
3M7-23142-00-00 Seat, Spring Upper |
3M7-23142-00-00 |
from US $8.08 |
||
|
27
|
27
1RY-23340-00-00
Under Bracket
|
1RY-23340-00-00 |
— | ||
|
28
|
28
1RY-23318-00-00
Holder, Cable 1
|
1RY-23318-00-00 |
— | ||
|
29
|
29
451-23346-00-00 Bolt 1 |
451-23346-00-00 |
from US $8.64 |
||
| replacement | |||||
|
29
|
29
451-23346-01-00 Bolt 1 |
451-23346-01-00 |
from US $8.64 |
||
|
30
|
30
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
30
|
30
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
31
|
31
1RY-23191-10-00
Boot
|
1RY-23191-10-00 |
— | ||
|
32
|
32
1RY-23192-00-00 Band |
1RY-23192-00-00 |
US $5.81 |
||
| replacement | |||||
|
32
|
32
3RW-23192-00-00 Band |
3RW-23192-00-00 |
from US $5.81 |
||
