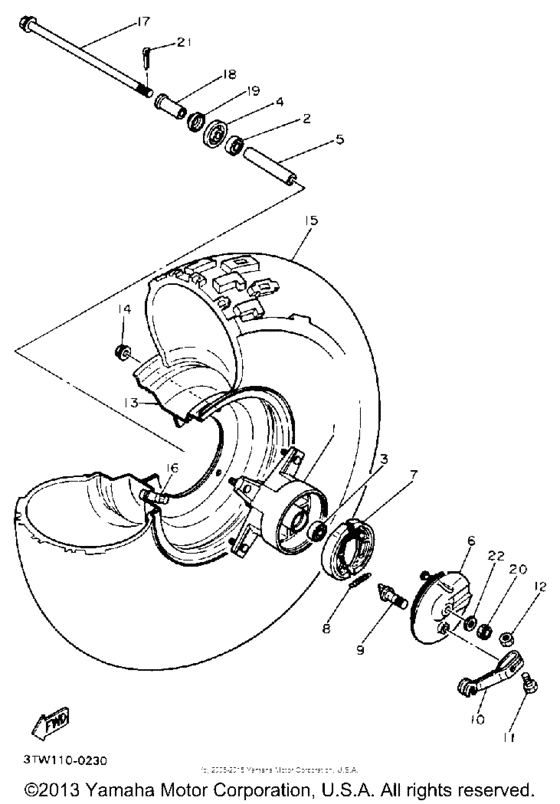

Front wheel Diagram Yamaha BW80 Big Wheel
- Year
- 1990
- Sales region
- USA
- Engine Capacity
- 80
- Model
- BW80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RY-25111-00-35
Hub, Front
|
1RY-25111-00-35 |
— | ||
|
2
|
2
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
3
|
3
93306-00108-00 Bearing |
93306-00108-00 |
from US $18.14 |
||
|
4
|
4
93106-18013-00 Oil Seal |
93106-18013-00 |
from US $7.51 |
||
|
5
|
5
903-87123-N0-00
Collar
|
903-87123-N0-00 |
— | ||
|
6
|
6
2J5-25121-00-35
Plate, Brake Shoe
|
2J5-25121-00-35 |
— | ||
|
7
|
7
5X2-W2535-00-00 Brake Shoe Kit |
5X2-W2535-00-00 |
from US $28.96 |
||
| replacement | |||||
|
7
|
7
3EC-W253A-00-00 Brake Shoe Kit |
3EC-W253A-00-00 |
from US $31.45 |
||
|
8
|
8
90506-14081-00 Spring, Tension |
90506-14081-00 |
from US $1.35 |
||
|
9
|
9
1YT-25351-00-00 Camshaft |
1YT-25351-00-00 |
US $27.76 |
||
|
10
|
10
451-25155-00-00 Lever, Camshaft 1 |
451-25155-00-00 |
from US $19.41 |
||
|
11
|
11
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
13
|
13
1RY-25180-10-35
Wheel, Front
|
1RY-25180-10-35 |
— | ||
|
14
|
14
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
15
|
15
941-06106-W2-00
At19X6-10Kt646A Dn (At19X6-10 K
DN AT19X6-10 K |
941-06106-W2-00 |
— | ||
|
16
|
16
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
17
|
17
1RY-25181-00-00 Axle, Wheel |
1RY-25181-00-00 |
US $33.37 |
||
|
18
|
18
903-87122-N9-00
Collar
|
903-87122-N9-00 |
— | ||
|
19
|
19
462-25118-00-00 Cover, Hub Dust |
462-25118-00-00 |
US $19.49 |
||
|
20
|
20
95301-12900-00 Nut, Castle |
95301-12900-00 |
US $3.37 |
||
| replacement | |||||
|
20
|
20
90171-12058-00 Nut, Castle |
90171-12058-00 |
US $3.37 |
||
|
21
|
21
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.66 |
||
|
22
|
22
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
