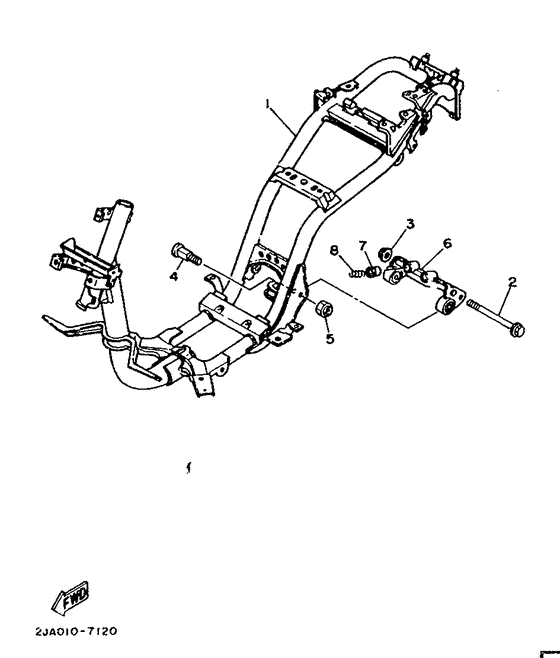

Frame Diagram Yamaha CG50 Jog
- Year
- 1988
- Colour
- Bluish Black (BIB; 00MW)
- Model code
- 2YR1
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CG50E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2JA-21110-00-33
Frame Comp
Yamaha black |
2JA-21110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
2JA-21110-01-33
Frame
Yamaha black |
2JA-21110-01-33 |
— | ||
|
02
|
02
901-05101-17-00 Bolt, Flange |
901-05101-17-00 |
from US $7.79 |
||
|
03
|
03
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
03
|
03
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
03
|
03
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
05
|
05
95614-10100-00 Nut, U |
95614-10100-00 |
from US $5.68 |
||
|
06
|
06
27V-21410-00-00
Engine Bracket Comp
|
27V-21410-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
