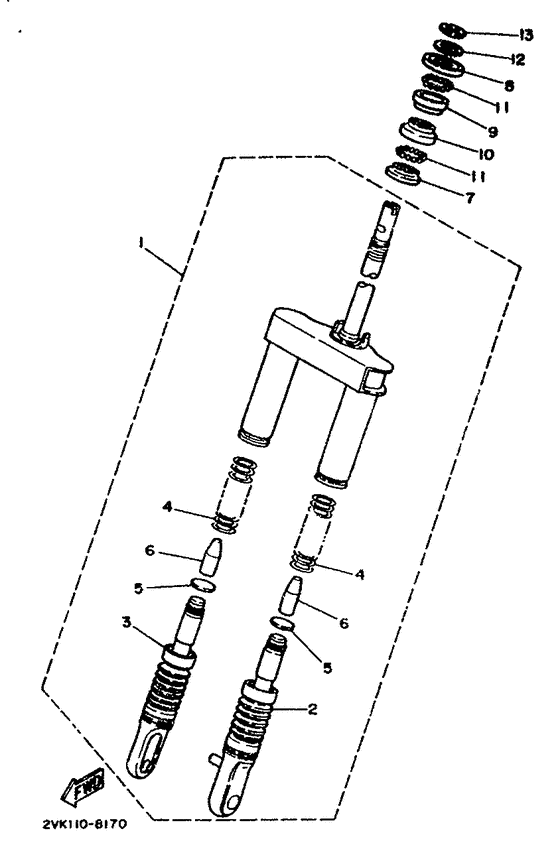

Front fork Diagram Yamaha CG50 Jog
- Year
- 1988
- Colour
- Bluish Black (BIB; 00MW)
- Model code
- 2YR1
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CG50E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2VK-23100-00-00
Front Fork Assy
|
2VK-23100-00-00 |
— | ||
| replacements | |||||
|
01
|
01
2VK-23100-03-00
Front Fork Assembly
|
2VK-23100-03-00 |
— | ||
|
01
|
01
2VK-23100-01-00
Fr0Nt F0Rk Assy
|
2VK-23100-01-00 |
— | ||
|
01
|
01
2VK-23100-02-00
New Genuine Part
|
2VK-23100-02-00 |
— | ||
|
02
|
02
2JA-23110-00-00
Inner Tube 1
|
2JA-23110-00-00 |
— | ||
|
03
|
03
2JA-23120-00-00
Inner Tube 2
|
2JA-23120-00-00 |
— | ||
|
04
|
04
2VK-23141-00-00
Spring, Front Fork
|
2VK-23141-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
1JX-23143-00-00
Seat, Spring Lower
|
1JX-23143-00-00 |
— | ||
|
06
|
06
52W-23195-00-00 Rubber |
52W-23195-00-00 |
from US $6.50 |
||
| replacement | |||||
|
06
|
06
5BM-23195-00-00 Rubber |
5BM-23195-00-00 |
from US $6.84 |
||
|
07
|
07
2E9-23414-01-00 Race, Ball 4 |
2E9-23414-01-00 |
from US $7.99 |
||
| replacement | |||||
|
07
|
07
3YJ-23414-00-00 Race, Ball 4 |
3YJ-23414-00-00 |
from US $9.71 |
||
|
08
|
08
2E9-23411-01-00 Race, Ball 1 |
2E9-23411-01-00 |
from US $10.77 |
||
| replacement | |||||
|
08
|
08
3KJ-23411-01-00 Race, Ball 1 |
3KJ-23411-01-00 |
from US $11.93 |
||
|
09
|
09
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
09
|
09
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
10
|
10
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
US $24.41 |
||
| replacement | |||||
|
10
|
10
2SA-23413-00-00 RACE, BALL 3 |
2SA-23413-00-00 |
from US $24.41 |
||
|
11
|
11
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
12
|
12
2T4-23418-01-00
Washer, Special
|
2T4-23418-01-00 |
— | ||
|
13
|
13
2E9-23454-00-00 Nut, Fitting 2 |
2E9-23454-00-00 |
from US $5.67 |
||
