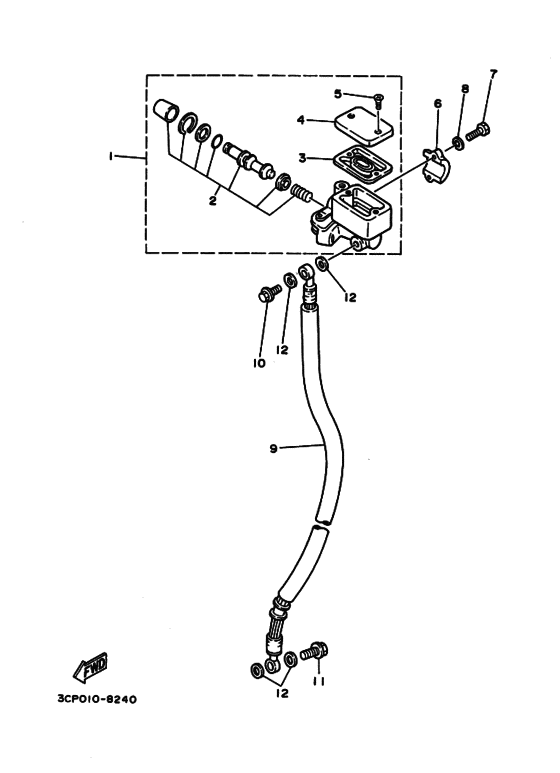

Front master cylinder Diagram Yamaha CG80 Jog
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2XX1
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- B
- Model
- CG80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AX-25870-00-00 Mstr.cylinder.sub.assembly.asseマスターシリンダサブアセンブリ; |
3AX-25870-00-00 |
US $236.65 |
||
|
2
|
2
56A-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
56A-W0041-00-00 |
from US $58.86 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm．ダイヤフラム，リザーバ; |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
1KH-25852-00-00 Cap, Reservoir．キヤツプ，リザーバ; |
1KH-25852-00-00 |
US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front)．キヤツプ，リザーバ; |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
．スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
3CP-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
3CP-25872-00-00 |
— | ||
|
10
|
10
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
