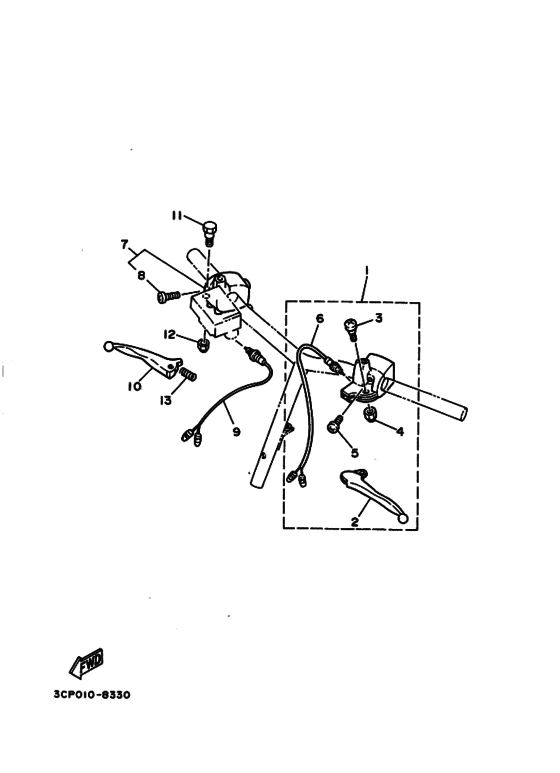

Handle switch & lever Diagram Yamaha CG80 Jog
- Year
- 1988
- Colour
- Silky White (SW; 00GE)
- Model code
- 2XX1
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- B
- Model
- CG80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XX-82910-00-00
Lever Holder Assy (Left)
レバーホルダアセンブリ ; レフト |
2XX-82910-00-00 |
— | ||
|
2
|
2
14T-83912-00-00 Lever 1．レバー １; |
14T-83912-00-00 |
US $15.02 |
||
| replacements | |||||
|
2
|
2
14T-83912-01-00 Lever 1．レバー １; |
14T-83912-01-00 |
from US $15.02 |
||
|
2
|
2
1YT-83912-00-00 Lever L．レバー １; |
1YT-83912-00-00 |
from US $18.06 |
||
|
3
|
3
90149-06175-00 Screw．スクリユ; |
90149-06175-00 |
from US $3.54 |
||
|
4
|
4
95606-05100-00 Nut, U．ナツト，Ｕ; ＵＲ |
95606-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
95617-05100-00 Nut, U．ナツト，Ｕ; ＵＲ |
95617-05100-00 |
from US $2.22 |
||
|
4
|
4
95706-05300-00 Nut, Flange．ナツト，ナイロン; ＵＲ |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
95707-05300-00 Nut, Flange．ナツト，ナイロン; ＵＲ |
95707-05300-00 |
from US $1.42 |
||
|
5
|
5
985-06050-16-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-16-00 |
— | ||
| replacements | |||||
|
5
|
5
98507-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
|
5
|
5
90157-05M19-00 Screw, Pan Head．スクリユ，パンヘツド; |
90157-05M19-00 |
from US $1.42 |
||
|
6
|
6
27V-83980-30-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
27V-83980-30-00 |
from US $23.09 |
||
| replacement | |||||
|
6
|
6
3E1-83980-09-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
3E1-83980-09-00 |
from US $25.12 |
||
|
7
|
7
2XX-83975-00-00
Switch, Handle 2
|
2XX-83975-00-00 |
— | ||
|
8
|
8
985-06050-16-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-16-00 |
— | ||
| replacements | |||||
|
8
|
8
98507-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
90157-05M19-00 Screw, Pan Head．スクリユ，パンヘツド; |
90157-05M19-00 |
from US $1.42 |
||
|
9
|
9
2NA-83980-00-00
Front Stop Switch Assy
|
2NA-83980-00-00 |
— | ||
|
10
|
10
2NA-83922-00-00 Lever 2レバー ２; |
2NA-83922-00-00 |
US $24.23 |
||
|
11
|
11
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
12
|
12
956-16061-00-00
Nut (17W)
ナツト，Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
13
|
13
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
