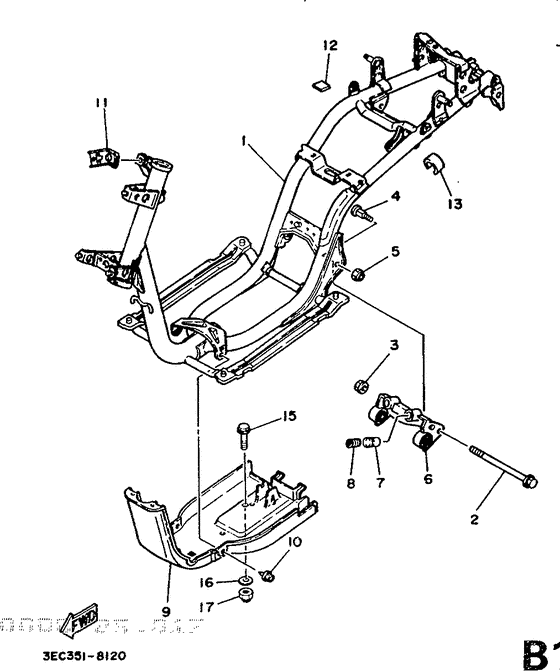

Frame Diagram Yamaha CH50 Beluga
- Year
- 1988
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3EC2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
35R-21110-00-00
Frame Comp
Mbk |
35R-21110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
02
|
02
90105-10161-00 Bolt, Washer Based |
90105-10161-00 |
US $9.78 |
||
|
03
|
03
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
03
|
03
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
03
|
03
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
05
|
05
95614-10100-00 Nut, U |
95614-10100-00 |
from US $4.68 |
||
|
06
|
06
35R-21410-00-00
Engine Bracket Comp
|
35R-21410-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
3EC-21471-00-00
Protector, Engine
|
3EC-21471-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3UP-F1471-00-00
Protector, Engine
|
3UP-F1471-00-00 |
— | ||
|
10
|
10
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
11
|
11
35R-21162-00-00
Holder, Clutch Cable
|
35R-21162-00-00 |
— | ||
|
12
|
12
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
13
|
13
2E9-24181-00-00
Damper, Locating 1
|
2E9-24181-00-00 |
— | ||
|
14
|
14
3EC-F117A-00-00
Stay
Mbk |
3EC-F117A-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
Mbk |
999-99999-99-00 |
— | ||
|
15
|
15
90119-06083-00
Bolt, With Washer
|
90119-06083-00 |
— | ||
|
16
|
16
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
16
|
16
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
17
|
17
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
