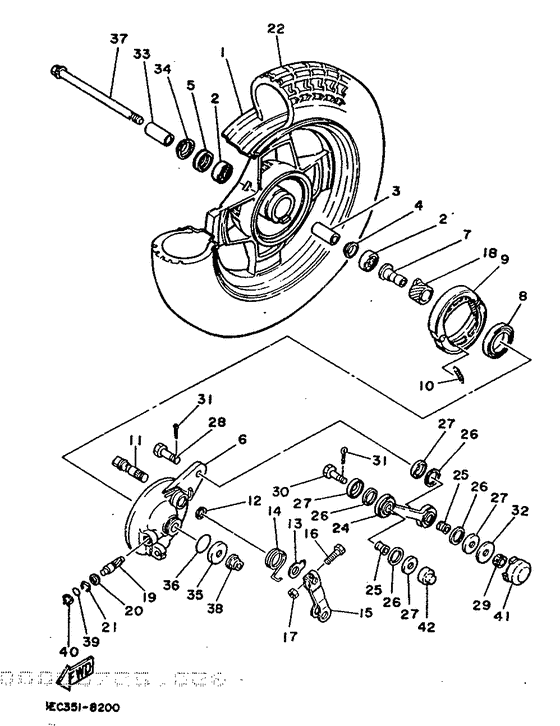

Front wheel Diagram Yamaha CH50 Beluga
- Year
- 1988
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3EC2
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CH50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
35R-25111-01-35
Hub, Front
Silver |
35R-25111-01-35 |
— | ||
| replacement | |||||
|
01
|
01
35R-25168-29-35
Hub, Fr0Nt
Silver |
35R-25168-29-35 |
— | ||
|
02
|
02
93306-20005-00 Brg,r-B 6200 30Mm 32G KyUr |
93306-20005-00 |
US $10.63 |
||
| replacement | |||||
|
02
|
02
93306-20009-00 Bearing (3R0)Ur |
93306-20009-00 |
from US $12.62 |
||
|
03
|
03
90560-10242-00
Spacer
|
90560-10242-00 |
— | ||
|
04
|
04
25K-25116-00-00 Flange, Spacer 2 |
25K-25116-00-00 |
from US $1.46 |
||
|
05
|
05
93109-17045-00
Oil Seal
|
93109-17045-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
35R-25120-00-35
Brake Shoe Plate Assy
Silver |
35R-25120-00-35 |
— | ||
|
07
|
07
90387-104J4-00
Collar
|
90387-104J4-00 |
— | ||
|
08
|
08
93109-40047-00 Oil Seal |
93109-40047-00 |
from US $8.64 |
||
|
09
|
09
35R-W2535-00-00
Brake Shoe Set
|
35R-W2535-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3EC-W253A-00-00 Brake Shoe Kit |
3EC-W253A-00-00 |
from US $31.45 |
||
|
10
|
10
90506-14081-00 Spring, Tension |
90506-14081-00 |
from US $1.35 |
||
|
11
|
11
35R-25151-00-00
Camshaft
|
35R-25151-00-00 |
— | ||
|
12
|
12
35R-25159-00-00
Seal, Camshaft
|
35R-25159-00-00 |
— | ||
|
13
|
13
4NO-2513A-00-00
Plate, Indicator
|
4NO-2513A-00-00 |
— | ||
|
14
|
14
90508-26613-00
Spring, Torsion
|
90508-26613-00 |
— | ||
|
15
|
15
35R-25155-00-00
Lever, Camshaft 1
|
35R-25155-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
17
|
17
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
35R-25135-00-00
Gear, Drive
|
35R-25135-00-00 |
— | ||
|
19
|
19
35R-25138-00-00
Gear, Meter
|
35R-25138-00-00 |
— | ||
|
20
|
20
90201-064L9-00
Washer, Plate
|
90201-064L9-00 |
— | ||
|
21
|
21
2T4-25137-00-00 Ring, Stop |
2T4-25137-00-00 |
from US $3.68 |
||
|
22
|
22
94130-104E7-00
Tire (3.00-10)
Mbk |
94130-104E7-00 |
— | ||
| replacement | |||||
|
22
|
22
941-30106-T8-00
Tire(3.00-10-2Pr)(3Fc)
Mbk |
941-30106-T8-00 |
— | ||
|
23
|
23
3EC-F5170-00-00
Air Valve Assy
Mbk |
3EC-F5170-00-00 |
— | ||
| replacement | |||||
|
23
|
23
3EC-F5170-09-00
Air Valve Assy
Mbk |
3EC-F5170-09-00 |
— | ||
|
24
|
24
35R-2517E-00-00
Bar, Compression
|
35R-2517E-00-00 |
— | ||
|
25
|
25
90387-084J4-00
Collar
|
90387-084J4-00 |
— | ||
|
26
|
26
296-23381-01-00 Seal, Dust 1 |
296-23381-01-00 |
from US $2.11 |
||
|
27
|
27
116-23383-00-00 Cover, Dust Seal |
116-23383-00-00 |
from US $2.11 |
||
|
28
|
28
90102-08052-00 Bolt, With Hole |
90102-08052-00 |
US $4.70 |
||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
29
|
29
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
29
|
29
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
30
|
30
90102-08053-00
Bolt, With Hole
|
90102-08053-00 |
— | ||
|
31
|
31
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
31
|
31
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
31
|
31
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
32
|
32
90201-08310-00 Washer, Plate |
90201-08310-00 |
from US $1.70 |
||
|
33
|
33
90387-104J5-00 Collar |
90387-104J5-00 |
US $7.88 |
||
|
34
|
34
451-25118-00-00 Cover, Hub Dust |
451-25118-00-00 |
from US $11.05 |
||
|
35
|
35
35R-25127-00-00
Cover, Plate
|
35R-25127-00-00 |
— | ||
|
36
|
36
93210-24108-00 O-Ring |
93210-24108-00 |
from US $3.26 |
||
|
37
|
37
35R-25181-00-00
Axle, Wheel
|
35R-25181-00-00 |
— | ||
|
38
|
38
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
38
|
38
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
39
|
39
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
40
|
40
2E9-25137-01-00 Ring, Stop |
2E9-25137-01-00 |
from US $3.40 |
||
|
41
|
41
35R-25188-00-00
Cap
|
35R-25188-00-00 |
— | ||
|
42
|
42
35R-25335-00-00 Cap |
35R-25335-00-00 |
from US $3.68 |
||
