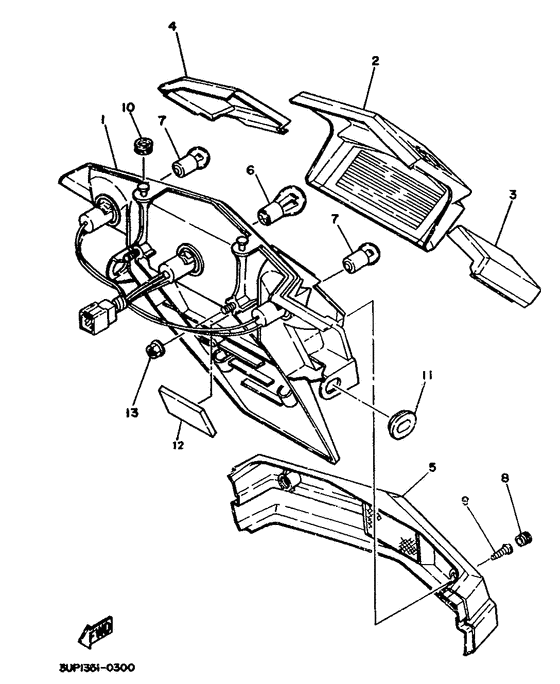

Taillight (PARA PORTUGAL) Diagram Yamaha CH80 Beluga
- Year
- 1990
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3WU1
- Sales region
- Spain (999)
- Engine Capacity
- 80
- Model
- CH80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
35R-84720-00-00
Base Assy
Pr.gb et br |
35R-84720-00-00 |
— | ||
|
02
|
02
35R-84721-00-00
Lens, Taillight
|
35R-84721-00-00 |
— | ||
| replacement | |||||
|
02
|
02
35R-84721-01-00
Lens, Taillight
|
35R-84721-01-00 |
— | ||
|
03
|
03
35R-83332-00-00
Lens, Flasher
|
35R-83332-00-00 |
— | ||
| replacement | |||||
|
03
|
03
35R-83332-01-00
Lens, Flasher Light 1
|
35R-83332-01-00 |
— | ||
|
04
|
04
35R-83342-00-00
Lens, Flasher 2
|
35R-83342-00-00 |
— | ||
| replacement | |||||
|
04
|
04
35R-83342-01-00
Lens, Flasher Light 2
|
35R-83342-01-00 |
— | ||
|
05
|
05
3UP-85130-00-00
Rear Reflector Assy
Pr.gb et br |
3UP-85130-00-00 |
— | ||
|
06
|
06
27V-84714-00-00 Bulb (12V-18/5W) |
27V-84714-00-00 |
from US $7.48 |
||
| replacements | |||||
|
06
|
06
5FC-84714-00-00 Bulb (12W-18/5W) |
5FC-84714-00-00 |
from US $7.48 |
||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
851-84744-00-00 Bulb |
851-84744-00-00 |
US $4.49 |
||
| replacement | |||||
|
07
|
07
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.49 |
||
|
08
|
08
35R-84759-00-00
Grommet
|
35R-84759-00-00 |
— | ||
|
09
|
09
97701-40516-00 Screw, Tapping |
97701-40516-00 |
from US $1.26 |
||
| replacements | |||||
|
09
|
09
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.26 |
||
|
09
|
09
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.24 |
||
|
10
|
10
90480-10334-00 Grommet |
90480-10334-00 |
from US $1.65 |
||
|
11
|
11
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.54 |
||
|
12
|
12
92701-06500-00
Screw, Flat Head
|
92701-06500-00 |
— | ||
