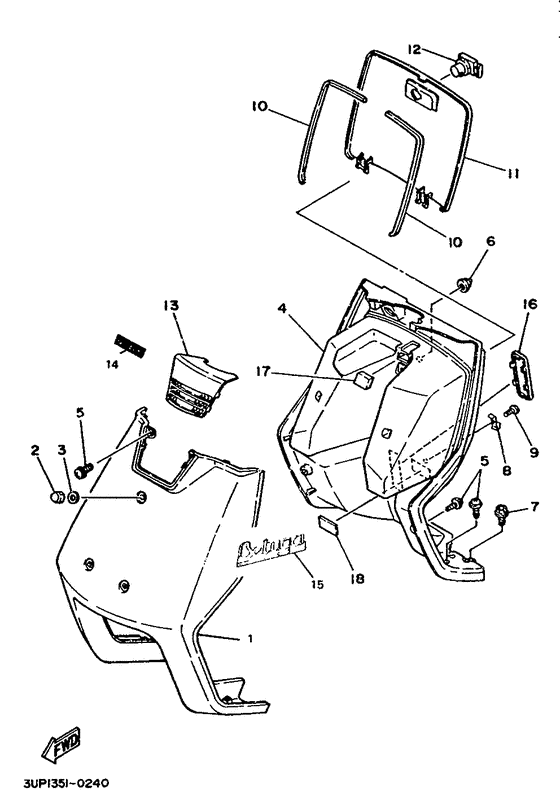

Leg shield Diagram Yamaha CH80 Beluga
- Year
- 1990
- Colour
- Glittering Black (GRB; 00FF)
- Model code
- 3WX1
- Sales region
- France (999)
- Engine Capacity
- 80
- Model
- CH80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3EC-F8311-00-15
Leg Shield 1
Glit.black |
3EC-F8311-00-15 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Glit.black |
999-99999-99-00 |
— | ||
|
01
|
01
3EC-F8311-00-17
Leg Shield 1
Burning red |
3EC-F8311-00-17 |
— | ||
|
02
|
02
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
03
|
03
90201-060H9-00 Washer, Plate |
90201-060H9-00 |
from US $2.69 |
||
|
04
|
04
35R-28312-00-00
Leg Shield 2
Pr.br et gb |
35R-28312-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3EC-F8312-00-00
Leg Shield 2
Pr.br et gb |
3EC-F8312-00-00 |
— | ||
|
05
|
05
90167-05016-00 Screw, Tapping |
90167-05016-00 |
from US $2.83 |
||
|
06
|
06
90176-06047-00 Nut,cap |
90176-06047-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
90176-06041-00 Nut, Crown (21G) |
90176-06041-00 |
from US $3.40 |
||
|
07
|
07
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
07
|
07
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.35 |
||
|
08
|
08
35R-21796-00-00 Hinge |
35R-21796-00-00 |
US $5.58 |
||
|
09
|
09
97706-40512-00 Screw, Tapping |
97706-40512-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.56 |
||
|
10
|
10
35R-28371-00-00
Damper
|
35R-28371-00-00 |
— | ||
|
11
|
11
3EC-F8313-00-00
Lid
Pr.br |
3EC-F8313-00-00 |
— | ||
|
11
|
11
3EC-F8313-30-00
Lid
Pr.gb |
3EC-F8313-30-00 |
— | ||
|
12
|
12
3EC-21780-00-00
Lock Assy
Pr.gb et br |
3EC-21780-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4BH-21708-01-00
Side Cover Lock Assembly
Pr.gb et br |
4BH-21708-01-00 |
— | ||
|
13
|
13
3EC-F835U-41-15
Panel 1
Glit.black |
3EC-F835U-41-15 |
— | ||
|
13
|
13
3EC-F835U-41-17
Panel 1
Burning red |
3EC-F835U-41-17 |
— | ||
|
14
|
14
3TU-24786-10-00 EmblemPr.gb et br |
3TU-24786-10-00 |
US $6.94 |
||
| replacements | |||||
|
14
|
14
3WF-2153E-60-00
Emblem, Yamaha
Pr.gb et br |
3WF-2153E-60-00 |
— | ||
|
14
|
14
3WF-2153E-61-00 EMBLEM, YAMAHAPr.gb et br |
3WF-2153E-61-00 |
from US $3.38 |
||
|
15
|
15
3WX-F8391-00-00
Graphic 1
Pr.gb |
3WX-F8391-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
Pr.gb |
999-99999-99-00 |
— | ||
|
15
|
15
3WX-F8391-10-00
Graphic 1
Pr.br |
3WX-F8391-10-00 |
— | ||
|
16
|
16
14T-28349-30-00 CapPr.gb |
14T-28349-30-00 |
from US $2.83 |
||
|
16
|
16
14T-28349-40-00 CapPr.br |
14T-28349-40-00 |
from US $7.37 |
||
| replacement | |||||
|
16
|
16
3WV-F8349-10-00 CapPr.br |
3WV-F8349-10-00 |
from US $8.08 |
||
|
17
|
17
4U1-21778-00-00 Damper, Locating 1 |
4U1-21778-00-00 |
from US $2.50 |
||
| replacement | |||||
|
17
|
17
1YW-21638-00-00 Damper |
1YW-21638-00-00 |
from US $2.50 |
||
|
18
|
18
36F-2139X-00-00
Damper
|
36F-2139X-00-00 |
— | ||
