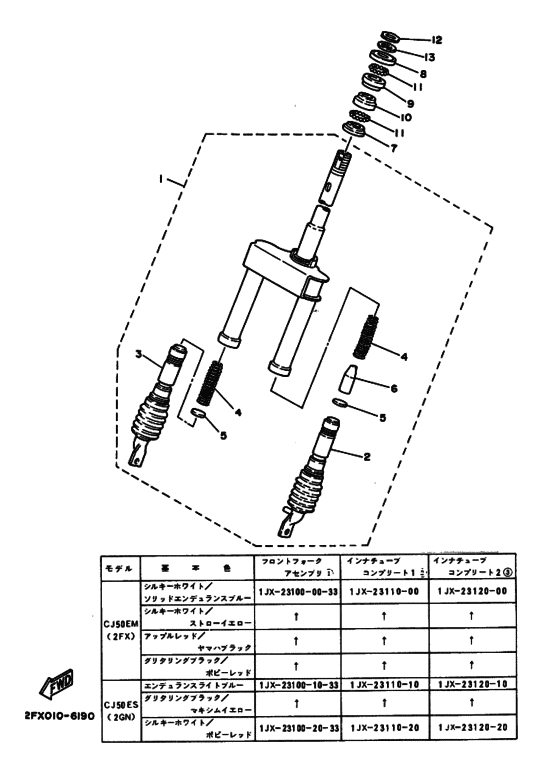

Front fork Diagram Yamaha CJ50 Champ
- Year
- 1986
- Colour
- Poppy Red (PPR; 00FG)
- Model code
- 2FX
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- D
- Model
- CJ50EM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1JX-23100-00-33
Front Fork Assy
フロントフオークアセンブリ; ＵＲ ヤマハブラツク （ブラツクブーツ） |
1JX-23100-00-33 |
— | ||
|
2
|
2
1JX-23110-00-00
Inner Tube Comp.1
．インナチユーブコンプリート １; ＵＲ ブラツクブーツ |
1JX-23110-00-00 |
— | ||
|
3
|
3
1JX-23120-00-00
Inner Tube Comp.2
．インナチユーブコンプリート ２; ＵＲ ブラツクブーツ |
1JX-23120-00-00 |
— | ||
|
4
|
4
1JX-23141-00-00
Spring, Front Fork
．スプリング，フロントフオーク; |
1JX-23141-00-00 |
— | ||
|
5
|
5
1JX-23143-00-00
Seat, Spring Lower
．シート，スプリングロワ; |
1JX-23143-00-00 |
— | ||
|
6
|
6
2T4-23195-00-00 Rubber．ラバー; |
2T4-23195-00-00 |
from US $6.50 |
||
| replacement | |||||
|
6
|
6
5BM-23195-00-00 Rubber．ラバー; |
5BM-23195-00-00 |
from US $6.84 |
||
|
7
|
7
2E9-23414-01-00 Race, Ball 4レース，ボール ４; |
2E9-23414-01-00 |
from US $7.99 |
||
| replacement | |||||
|
7
|
7
3YJ-23414-00-00 Race, Ball 4レース，ボール ４; |
3YJ-23414-00-00 |
from US $9.71 |
||
|
8
|
8
2E9-23411-01-00 Race, Ball 1レース，ボール １; |
2E9-23411-01-00 |
from US $10.77 |
||
| replacement | |||||
|
8
|
8
3KJ-23411-01-00 Race, Ball 1レース，ボール １; |
3KJ-23411-01-00 |
from US $11.93 |
||
|
9
|
9
2E9-23412-00-00 Race, Ball 2レース，ボール ２; |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
9
|
9
2SA-23412-00-00 レース，ボール ２; |
2SA-23412-00-00 |
from US $22.67 |
||
|
10
|
10
2E9-23413-01-00 Race, Ball 3レース，ボール ３; |
2E9-23413-01-00 |
US $24.41 |
||
| replacement | |||||
|
10
|
10
2SA-23413-00-00 RACE, BALL 3レース，ボール ３; |
2SA-23413-00-00 |
from US $24.41 |
||
|
11
|
11
93505-32002-00 Ballボール; |
93505-32002-00 |
from US $1.84 |
||
|
12
|
12
2E9-23454-00-00 Nut, Fitting 2 |
2E9-23454-00-00 |
from US $5.67 |
||
|
13
|
13
2T4-23418-01-00
Washer, Special
|
2T4-23418-01-00 |
— | ||
