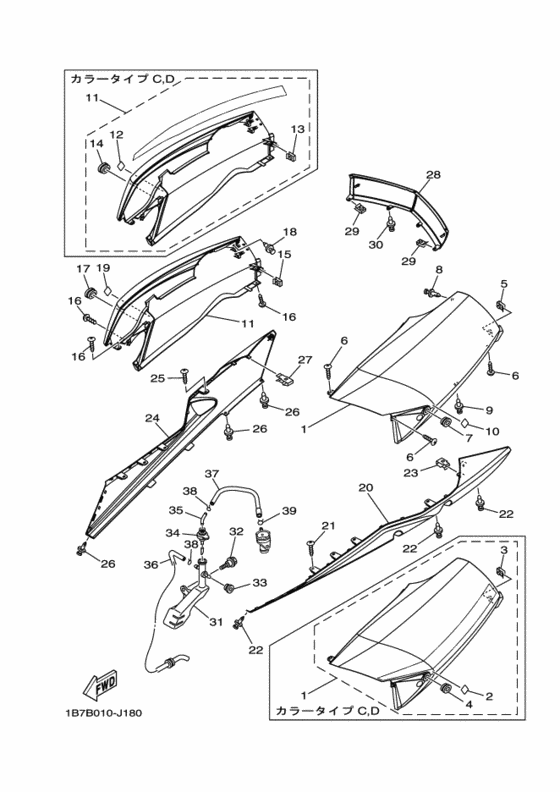

Side cover comp Diagram Yamaha CP250 Maxam
- Year
- 2010
- Colour
- Greenish White Solid 1 (GW S1; 1195)
- Model code
- 1B7B
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- C
- Model
- CP250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1B7-Y2171-20-P8 Cover, Side 1ＷＧ ＷＧ; ＵＲ ＧＷＳ１ |
1B7-Y2171-20-P8 |
US $411.93 |
||
|
2
|
2
1UF-15379-00-00 Seal．シ−ル; ＵＲ |
1UF-15379-00-00 |
from US $1.70 |
||
|
3
|
3
901-83050-42-00 Nut, Spring．ナツト，スプリング; ＵＲ |
901-83050-42-00 |
from US $1.52 |
||
|
4
|
4
904-80015-58-00 Grommet．グロメツト; ＵＲ |
904-80015-58-00 |
from US $1.66 |
||
|
6
|
6
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
6
|
6
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
8
|
8
902-69080-01-00 Rivet |
902-69080-01-00 |
from US $2.08 |
||
|
9
|
9
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
11
|
11
1B7-Y2172-20-P8 Cover, Side 2ＷＧ ＷＧ; ＵＲ ＧＷＳ１ |
1B7-Y2172-20-P8 |
US $320.53 |
||
|
12
|
12
1UF-15379-00-00 Seal．シ−ル; ＵＲ |
1UF-15379-00-00 |
from US $1.70 |
||
|
13
|
13
901-83050-42-00 Nut, Spring．ナツト，スプリング; ＵＲ |
901-83050-42-00 |
from US $1.52 |
||
|
14
|
14
904-80015-58-00 Grommet．グロメツト; ＵＲ |
904-80015-58-00 |
from US $1.66 |
||
|
16
|
16
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
16
|
16
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
18
|
18
902-69080-01-00 Rivet |
902-69080-01-00 |
from US $2.08 |
||
|
20
|
20
1B7-2171L-01-P8 Mole, Side Cover 1ＵＲ ＧＷＳ１ |
1B7-2171L-01-P8 |
US $165.79 |
||
|
21
|
21
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
21
|
21
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
22
|
22
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
23
|
23
5GM-28379-01-00 Hook |
5GM-28379-01-00 |
from US $2.70 |
||
|
24
|
24
1B7-2171M-00-P8 Mole, Side Cover 2ＵＲ ＧＷＳ１ |
1B7-2171M-00-P8 |
US $175.46 |
||
|
25
|
25
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
25
|
25
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $2.08 |
||
|
26
|
26
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
27
|
27
5GM-28379-01-00 Hook |
5GM-28379-01-00 |
from US $2.70 |
||
|
28
|
28
1B7-2171N-00-P8 Mole, Side Cover 3ＵＲ ＧＷＳ１ |
1B7-2171N-00-P8 |
US $97.54 |
||
|
29
|
29
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
30
|
30
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
31
|
31
1B7-21871-00-00 Tank, Recovery |
1B7-21871-00-00 |
from US $22.95 |
||
|
32
|
32
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
33
|
33
904-80131-97-00
Grommet
|
904-80131-97-00 |
— | ||
| replacement | |||||
|
33
|
33
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.50 |
||
|
34
|
34
1B7-21875-00-00 Cap |
1B7-21875-00-00 |
from US $9.63 |
||
|
35
|
35
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $4.72 |
||
|
36
|
36
1B7-21816-00-00 Pipe 1 |
1B7-21816-00-00 |
US $11.33 |
||
|
37
|
37
1B7-21817-00-00 Pipe 2 |
1B7-21817-00-00 |
US $3.12 |
||
|
38
|
38
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
39
|
39
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
39
|
39
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
39
|
39
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
