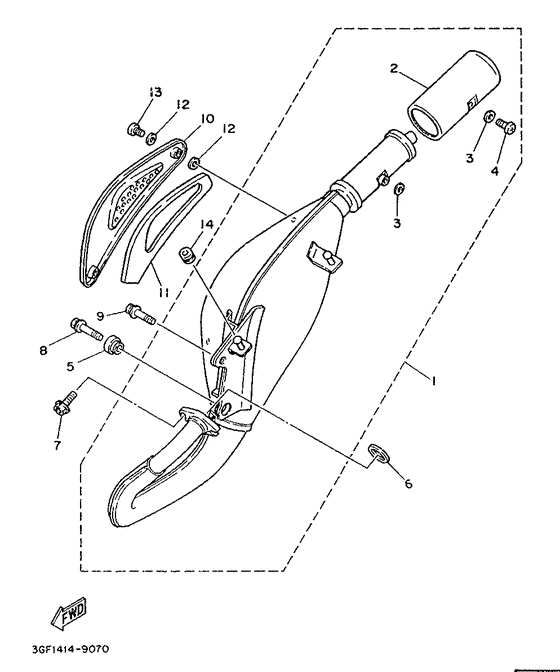

Exhaust Diagram Yamaha CR50z Target
- Year
- 1996
- Colour
- White Metallic 1 (WM1; 0233)
- Model code
- 3WN2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CR50Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WN-E4610-00-00
Exhaust Pipe Assy 1
|
3WN-E4610-00-00 |
— | ||
|
02
|
02
3GF-E4758-00-00
Protecter, Silencer
|
3GF-E4758-00-00 |
— | ||
|
03
|
03
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
03
|
03
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
04
|
04
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
05
|
05
3HR-E4737-00-00
Damper, Muffler
|
3HR-E4737-00-00 |
— | ||
|
06
|
06
1NT-E4613-00-00 Gasket, Exhaust Pipe |
1NT-E4613-00-00 |
from US $2.83 |
||
| replacement | |||||
|
06
|
06
3NT-E4613-01-00 Gasket, Exhaust Pipe |
3NT-E4613-01-00 |
from US $2.74 |
||
|
07
|
07
90149-06810-00 Screw |
90149-06810-00 |
US $1.84 |
||
| replacement | |||||
|
07
|
07
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
08
|
08
90119-08805-00 Bolt, With Washer |
90119-08805-00 |
US $3.10 |
||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90119-08804-00
Bolt, With Washer
|
90119-08804-00 |
— | ||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3GF-E4718-00-98
Protector, Muffler 1
|
3GF-E4718-00-98 |
— | ||
|
11
|
11
3GF-E4747-00-00
Damper, Muffler
|
3GF-E4747-00-00 |
— | ||
|
12
|
12
902-02060-10-00
Washer Plate 178147660000
|
902-02060-10-00 |
— | ||
| replacement | |||||
|
12
|
12
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
13
|
13
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
14
|
14
90480-12829-00
Grommet
|
90480-12829-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
