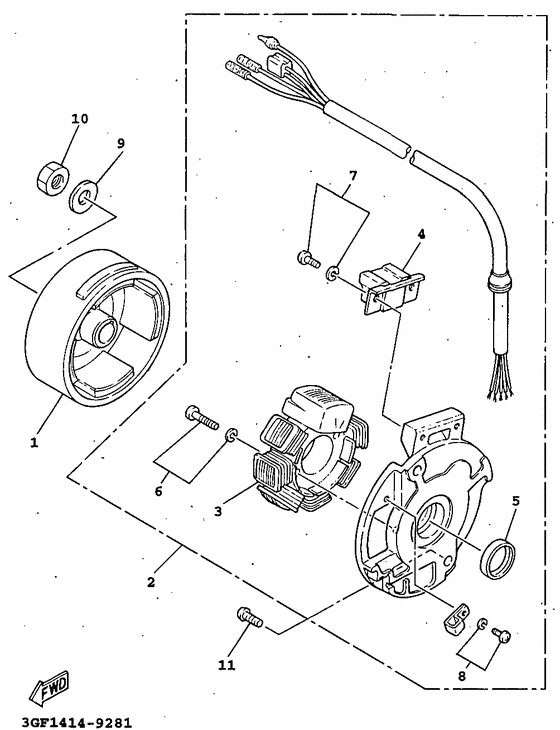

Generator Diagram Yamaha CR50z Target
- Year
- 1996
- Colour
- White Metallic 1 (WM1; 0233)
- Model code
- 3WN2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CR50Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GF-H5550-00-00
Rotor Assy
|
3GF-H5550-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3GF-H5560-00-00
Base Assy
|
3GF-H5560-00-00 |
— | ||
|
03
|
03
3GF-81403-V0-00 Statorcomp |
3GF-81403-V0-00 |
US $162.07 |
||
| replacement | |||||
|
03
|
03
2JA-81403-M0-00 Stator Comp |
2JA-81403-M0-00 |
from US $144.07 |
||
|
04
|
04
3GF-85580-V0-00 Coil, Pulser |
3GF-85580-V0-00 |
US $40.30 |
||
| replacement | |||||
|
04
|
04
2JA-85580-M0-00 Coil, Pulser |
2JA-85580-M0-00 |
US $47.04 |
||
|
05
|
05
93104-19097-00 Oil Seal |
93104-19097-00 |
from US $4.82 |
||
|
06
|
06
97607-05120-00
Screw, Pan Head With Washer
|
97607-05120-00 |
— | ||
|
07
|
07
97607-05110-00
Screw, Pan Head With Washer
|
97607-05110-00 |
— | ||
|
08
|
08
97607-04106-00 Screw, Pan Head With Washer |
97607-04106-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
09
|
09
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
10
|
10
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
10
|
10
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
11
|
11
98501-06016-00 Screw, Pan Head |
98501-06016-00 |
US $2.55 |
||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
