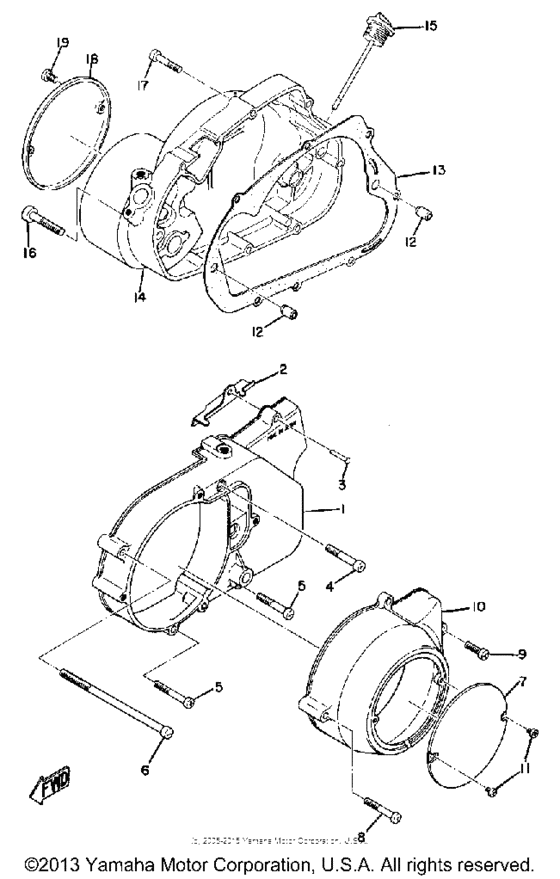

Crankcase cover Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
237-15410-00-00
Crcs Cover Assembly L
|
237-15410-00-00 |
— | ||
|
2
|
2
174-15418-01-00
Cover, Chain Case
|
174-15418-01-00 |
— | ||
|
3
|
3
902-66060-05-00
Rivet
|
902-66060-05-00 |
— | ||
|
4
|
4
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
5
|
5
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
6
|
6
92511-06140-00
Screw, Pan Head
|
92511-06140-00 |
— | ||
| replacements | |||||
|
6
|
6
98517-06140-00
Screw, Pan Head
|
98517-06140-00 |
— | ||
|
6
|
6
98511-06140-00
Screw, Pan Head
|
98511-06140-00 |
— | ||
|
7
|
7
164-15415-00-00 Cover, 1 |
164-15415-00-00 |
from US $23.09 |
||
|
8
|
8
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
9
|
9
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
10
|
10
237-15425-00-00
Cover, Generator R
|
237-15425-00-00 |
— | ||
|
11
|
11
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
11
|
11
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
11
|
11
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
12
|
12
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
12
|
12
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
12
|
12
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
13
|
13
237-15324-00-00
Gasket,crankcase 2
|
237-15324-00-00 |
— | ||
| replacement | |||||
|
13
|
13
237-15324-09-00
ROD,PUSH 2
|
237-15324-09-00 |
— | ||
|
14
|
14
237-15421-00-00
Cover, Crankcase R
|
237-15421-00-00 |
— | ||
|
15
|
15
174-15363-00-00
Plug, Oil
|
174-15363-00-00 |
— | ||
|
16
|
16
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
17
|
17
98580-06035-00 Screw Pan Head |
98580-06035-00 |
US $2.13 |
||
| replacement | |||||
|
17
|
17
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
18
|
18
174-15416-00-00
Cover, Oil Pump
|
174-15416-00-00 |
— | ||
|
19
|
19
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
