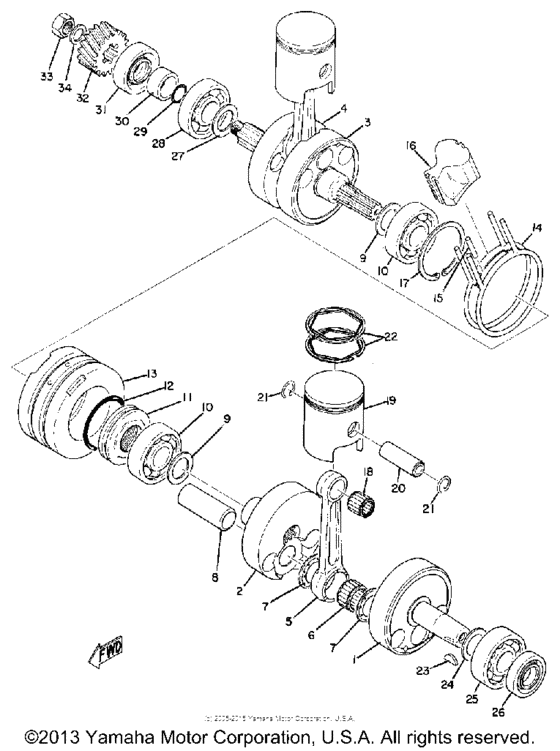

Crankshaft & Piston Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-11400-02-00
Crankshaft Assembly
|
174-11400-02-00 |
— | ||
|
1
|
1
174-11412-02-00
Crank 1
|
174-11412-02-00 |
— | ||
|
2
|
2
174-11422-02-00
Crank 2
|
174-11422-02-00 |
— | ||
|
3
|
3
174-11432-01-00
Crank 2 (L)
L |
174-11432-01-00 |
— | ||
|
4
|
4
174-11442-01-00
Crank 4
|
174-11442-01-00 |
— | ||
|
5
|
5
50W-11651-00-00 Rod, Connecting (787-11651-10787-11651-10 |
50W-11651-00-00 |
from US $172.80 |
||
|
6
|
6
93310-42012-00 Bearing, Cylinder.#10 |
93310-42012-00 |
from US $16.72 |
||
|
7
|
7
902-09201-59-00 Washer, Crank Pin (1H9) |
902-09201-59-00 |
from US $3.72 |
||
|
8
|
8
2Y1-11681-00-00 Pin, Crank |
2Y1-11681-00-00 |
from US $35.56 |
||
|
9
|
9
132-11561-00-03
Shim, Crank 1
|
132-11561-00-03 |
— | ||
|
10
|
10
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
11
|
11
174-11515-00-00
Seal, Labyrinth 1
|
174-11515-00-00 |
— | ||
|
12
|
12
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
13
|
13
174-11511-01-00
Cover, Crank
|
174-11511-01-00 |
— | ||
|
14
|
14
174-11512-02-00
Seal, Crank Cover
|
174-11512-02-00 |
— | ||
|
15
|
15
93604-18058-00
Pin, Dowel
|
93604-18058-00 |
— | ||
| replacement | |||||
|
15
|
15
93604-18251-00
Pin, Dowel(4Ss)
|
93604-18251-00 |
— | ||
|
16
|
16
174-11541-01-00
Metal, Filler
|
174-11541-01-00 |
— | ||
|
17
|
17
934-50520-10-00 Circlip |
934-50520-10-00 |
US $2.60 |
||
|
18
|
18
93310-21403-00 Bearing |
93310-21403-00 |
from US $7.36 |
||
|
19
|
19
273-11631-60-97
Piston Std
|
273-11631-60-97 |
— | ||
|
19
|
19
273-11635-60-00
Piston 1 O/s 0.25
O/S 0.25 |
273-11635-60-00 |
— | ||
|
19
|
19
273-11636-60-00
Piston 2 O/s 0.50
O/S 0.50 |
273-11636-60-00 |
— | ||
|
20
|
20
131-11633-00-00 Pin, Piston |
131-11633-00-00 |
from US $15.58 |
||
|
21
|
21
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.70 |
||
|
22
|
22
273-11601-01-00
Piston Ringset Std
|
273-11601-01-00 |
— | ||
|
22
|
22
273-11601-11-00
Piston Ringset 1St
1ST |
273-11601-11-00 |
— | ||
|
22
|
22
273-11601-21-00
Piston Ringset 2Nd
2ND |
273-11601-21-00 |
— | ||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
24
|
24
136-11561-00-05
Shim, Crank 1
|
136-11561-00-05 |
— | ||
|
25
|
25
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
25
|
25
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
26
|
26
931-02204-47-00 Oil Seal |
931-02204-47-00 |
from US $4.72 |
||
|
27
|
27
156-11562-00-05
Shim, Crank 2
|
156-11562-00-05 |
— | ||
|
27
|
27
156-11562-00-07
Shim, Crank 2
|
156-11562-00-07 |
— | ||
|
28
|
28
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
29
|
29
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $3.14 |
||
|
30
|
30
903-87204-99-00
Collar
|
903-87204-99-00 |
— | ||
|
31
|
31
931-03320-31-00
Oil Seal, Sw-Type
|
931-03320-31-00 |
— | ||
|
32
|
32
174-16111-00-00
Gear, Pri Drive
|
174-16111-00-00 |
— | ||
|
33
|
33
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
34
|
34
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
34
|
34
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
