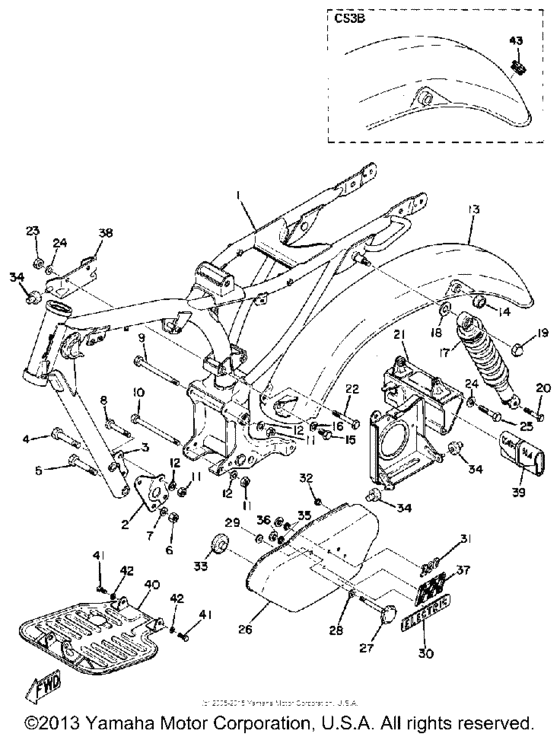

Frame, rear cushiion & rear fender Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
237-21110-00-33
Frame
|
237-21110-00-33 |
— | ||
|
2
|
2
174-21315-00-00
Stay, Engine 2
|
174-21315-00-00 |
— | ||
|
3
|
3
174-21316-00-00
Stay, Engine 3
|
174-21316-00-00 |
— | ||
|
4
|
4
901-01100-70-00 Bolt |
901-01100-70-00 |
US $5.81 |
||
|
5
|
5
901-01100-70-00 Bolt |
901-01100-70-00 |
US $5.81 |
||
|
6
|
6
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
8
|
8
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
8
|
8
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
9
|
9
95821-08115-00 Bolt, Flange |
95821-08115-00 |
from US $4.52 |
||
| replacement | |||||
|
9
|
9
95817-08115-00 Bolt, Flange |
95817-08115-00 |
from US $6.38 |
||
|
9
|
9
90109-08386-00 Bolt |
90109-08386-00 |
from US $7.79 |
||
|
10
|
10
973-21081-35-00 Bolt, Hexagon (174-21483-00)174-21483-00 |
973-21081-35-00 |
US $8.22 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
13
|
13
178-21610-00-93
Fender, Rear
|
178-21610-00-93 |
— | ||
|
13
|
13
174-21610-00-93
Fender, Rear
|
174-21610-00-93 |
— | ||
|
14
|
14
903-87181-46-00
Collar
|
903-87181-46-00 |
— | ||
|
15
|
15
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
15
|
15
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
178-22210-20-00
Shk/abs Assembly, Rear
|
178-22210-20-00 |
— | ||
|
18
|
18
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $2.08 |
||
|
19
|
19
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
20
|
20
90106-08027-00 Bolt, Dome Head |
90106-08027-00 |
from US $5.10 |
||
|
21
|
21
193-21170-00-33
Box
|
193-21170-00-33 |
— | ||
|
22
|
22
97021-08065-00
Bolt(2Nl)
|
97021-08065-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
25
|
25
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.95 |
||
|
26
|
26
193-21711-60-04
Cover, Side 1
|
193-21711-60-04 |
— | ||
|
26
|
26
193-21711-60-05
Cover, Side 1
|
193-21711-60-05 |
— | ||
|
27
|
27
168-21714-00-00
Knob, Side Cover 1
|
168-21714-00-00 |
— | ||
|
28
|
28
902-02080-20-00
Washer, Plate
|
902-02080-20-00 |
— | ||
|
29
|
29
901-79080-35-00
Nut, Spec''l Shape
|
901-79080-35-00 |
— | ||
|
30
|
30
118-21787-00-00
Emblem 7
|
118-21787-00-00 |
— | ||
|
31
|
31
273-21786-00-00
Emblem 6
|
273-21786-00-00 |
— | ||
|
32
|
32
137-21778-00-00
Damper, Locating 1
|
137-21778-00-00 |
— | ||
|
33
|
33
174-21717-00-00
Damper
|
174-21717-00-00 |
— | ||
|
34
|
34
903-85050-17-00
Bush, Spec''l Rubber
|
903-85050-17-00 |
— | ||
|
35
|
35
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
36
|
36
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
|
37
|
37
193-21787-60-00
Emblem 7
|
193-21787-60-00 |
— | ||
|
38
|
38
174-21797-00-00
Hinge
|
174-21797-00-00 |
— | ||
|
39
|
39
396-28100-10-00
Tool Kit
|
396-28100-10-00 |
— | ||
| replacement | |||||
|
39
|
39
1E7-W2810-00-00
Tool Kit
|
1E7-W2810-00-00 |
— | ||
|
40
|
40
178-21471-02-33
Protector, Engine
|
178-21471-02-33 |
— | ||
|
41
|
41
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
41
|
41
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
214-84154-60-00
Grommet
|
214-84154-60-00 |
— | ||
