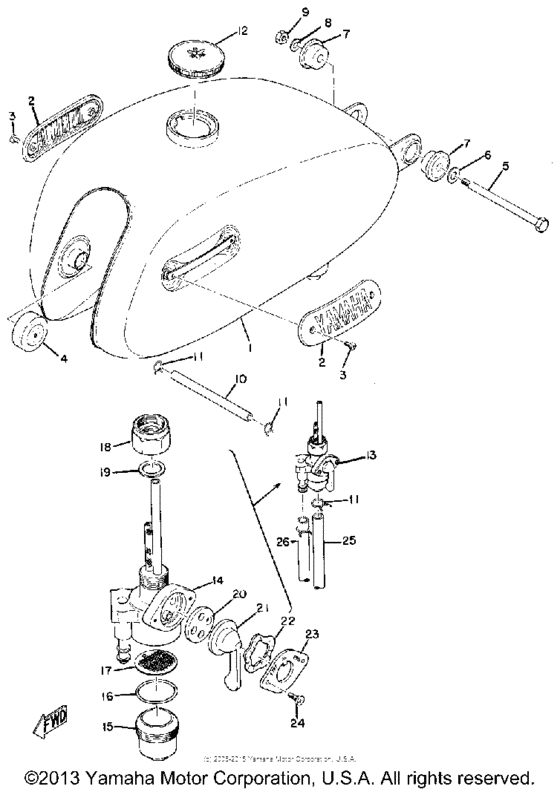

Fuel tank Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
238-24110-00-01
Fuel Tank
|
238-24110-00-01 |
— | ||
|
1
|
1
238-24110-00-02
Fuel Tank
|
238-24110-00-02 |
— | ||
|
2
|
2
227-24161-00-00
Emblem 1
|
227-24161-00-00 |
— | ||
|
3
|
3
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
4
|
4
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
5
|
5
901-09060-26-00
Bolt
|
901-09060-26-00 |
— | ||
|
6
|
6
90201-085E6-00 Washer Plate156-24186-00 |
90201-085E6-00 |
from US $4.39 |
||
|
7
|
7
156-24182-01-00
Damper, Locating 2
|
156-24182-01-00 |
— | ||
|
8
|
8
902-01060-73-00
Washer, Plate
|
902-01060-73-00 |
— | ||
| replacement | |||||
|
8
|
8
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
10
|
10
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
10
|
10
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
11
|
11
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
12
|
12
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
13
|
13
132-24500-02-00
Fuel Cock Assembly 1
|
132-24500-02-00 |
— | ||
|
14
|
14
UNA-VAILA-BL-EI
Carburetor Assembly
|
UNA-VAILA-BL-EI |
— | ||
|
15
|
15
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
16
|
16
132-24522-00-00 Gasket |
132-24522-00-00 |
from US $17.71 |
||
| replacement | |||||
|
16
|
16
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
17
|
17
304-24515-00-00
Net, Filter 2
|
304-24515-00-00 |
— | ||
|
18
|
18
132-24531-00-00
Nut
|
132-24531-00-00 |
— | ||
|
19
|
19
434-24532-00-00 Gasket |
434-24532-00-00 |
from US $5.53 |
||
|
20
|
20
137-24523-00-00 Petcock Packing Valve |
137-24523-00-00 |
from US $8.36 |
||
|
21
|
21
168-24524-00-00
Lever, Cock
|
168-24524-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
23
|
23
132-24525-01-00
Plate, Lvr Fitting
|
132-24525-01-00 |
— | ||
|
24
|
24
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
25
|
25
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
25
|
25
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
25
|
25
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
26
|
26
90445-09094-00 Hose (L420) |
90445-09094-00 |
from US $6.52 |
||
| replacements | |||||
|
26
|
26
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
26
|
26
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
