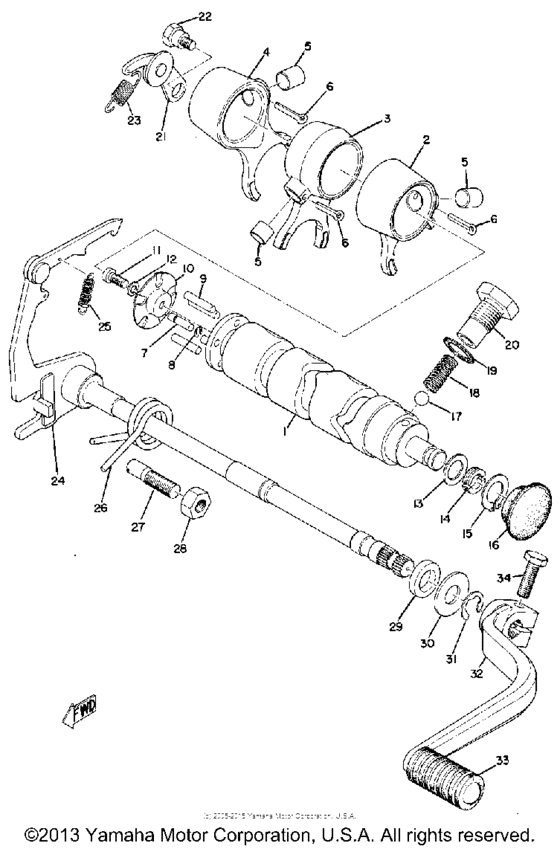

Shift shaft Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-18500-03-00
Shifter Assembly
|
174-18500-03-00 |
— | ||
|
1
|
1
174-18541-03-00
Cam, Shift
|
174-18541-03-00 |
— | ||
|
2
|
2
174-18511-00-00
Fork, Shift 1
|
174-18511-00-00 |
— | ||
|
3
|
3
174-18512-00-00
Fork, Shift 2
|
174-18512-00-00 |
— | ||
|
4
|
4
174-18513-00-00
Fork, Shift 3
|
174-18513-00-00 |
— | ||
|
5
|
5
902-50100-20-00
Pin, Straight
|
902-50100-20-00 |
— | ||
|
6
|
6
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
6
|
6
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
7
|
7
90249-04039-00
Pin, Spec''l Shape (174-18544
174-18544 |
90249-04039-00 |
— | ||
|
8
|
8
93430-03014-00
Circlip, E-Type
|
93430-03014-00 |
— | ||
|
9
|
9
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
10
|
10
164-18561-00-00 Plate, Side 1 |
164-18561-00-00 |
from US $3.26 |
||
|
11
|
11
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
14
|
14
307-18571-00-00
Holder, Shift Cam
|
307-18571-00-00 |
— | ||
|
15
|
15
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
15
|
15
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
16
|
16
307-18533-00-00
Plug, Blind
|
307-18533-00-00 |
— | ||
|
17
|
17
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
18
|
18
90501-12083-00 Spring, Compression |
90501-12083-00 |
US $1.62 |
||
| replacement | |||||
|
18
|
18
90501-12750-00 Spring, Compression |
90501-12750-00 |
US $1.58 |
||
|
19
|
19
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
20
|
20
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
21
|
21
132-18140-01-00 Stopper Lever Assembly |
132-18140-01-00 |
from US $14.17 |
||
|
22
|
22
90109-06001-00 Bolt 132181770000 |
90109-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
22
|
22
901-09062-39-00 Bolt |
901-09062-39-00 |
from US $1.47 |
||
|
23
|
23
90506-09112-00 Spring, Tension |
90506-09112-00 |
from US $2.55 |
||
|
24
|
24
174-18101-02-00
Shift Shaft Assembly.1
|
174-18101-02-00 |
— | ||
|
25
|
25
90506-09009-00 Spring, Tension |
90506-09009-00 |
from US $2.55 |
||
|
26
|
26
90508-32207-00 Spring, Torsion (132-18124-00)132-18124-00 |
90508-32207-00 |
from US $8.50 |
||
|
27
|
27
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
28
|
28
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
29
|
29
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.86 |
||
|
30
|
30
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
31
|
31
93430-10017-00 Circlip |
93430-10017-00 |
from US $1.35 |
||
| replacement | |||||
|
31
|
31
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
32
|
32
173-18111-01-93
Pedal, Shift
|
173-18111-01-93 |
— | ||
|
33
|
33
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
34
|
34
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
34
|
34
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
