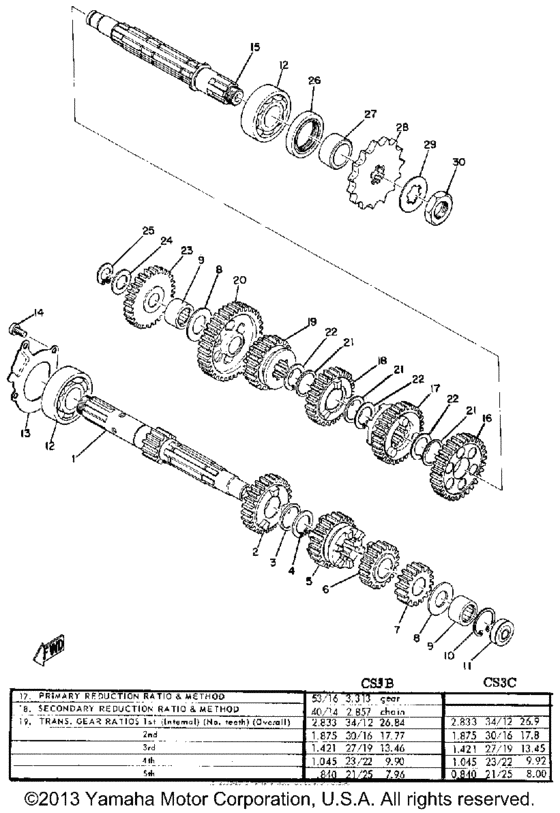

Transmission Diagram Yamaha CS3/ CS5
- Year
- 1971
- Sales region
- USA
- Engine Capacity
- 300
- Model
- CS3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
174-17411-01-00
Axle, Main
|
174-17411-01-00 |
— | ||
|
2
|
2
174-17151-00-00
Gear, 5Th Pinion
5TH PINION |
174-17151-00-00 |
— | ||
|
3
|
3
90201-20266-00 Washer, Plate1.0T |
90201-20266-00 |
from US $1.56 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
174-17141-00-00
Gear, 4Th Pinion
4TH PINION |
174-17141-00-00 |
— | ||
|
6
|
6
174-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
174-17131-00-00 |
— | ||
|
7
|
7
174-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
174-17121-00-00 |
— | ||
|
8
|
8
164-17427-00-06 Shim 1T=0.6 |
164-17427-00-06 |
from US $3.12 |
||
|
9
|
9
93315-31502-00 Bearing |
93315-31502-00 |
from US $12.12 |
||
|
10
|
10
934-20220-26-00
Circlip, R-Type
|
934-20220-26-00 |
— | ||
|
11
|
11
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $3.38 |
||
|
12
|
12
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
12
|
12
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
13
|
13
248-17471-01-00
Plate, Cover
|
248-17471-01-00 |
— | ||
|
14
|
14
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
15
|
15
174-17421-00-00
Axle, Drive
|
174-17421-00-00 |
— | ||
|
16
|
16
174-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
174-17221-00-00 |
— | ||
|
17
|
17
174-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
174-17231-00-00 |
— | ||
|
18
|
18
174-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
174-17241-00-00 |
— | ||
|
19
|
19
174-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
174-17251-00-00 |
— | ||
|
20
|
20
174-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
174-17211-01-00 |
— | ||
|
21
|
21
90201-20266-00 Washer, Plate1.0T |
90201-20266-00 |
from US $1.56 |
||
|
22
|
22
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
23
|
23
180-15651-01-00
Gear, Kick Idle
|
180-15651-01-00 |
— | ||
|
24
|
24
132-15653-00-10
Washer
|
132-15653-00-10 |
— | ||
|
25
|
25
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
26
|
26
93102-28021-00 Oil Seal |
93102-28021-00 |
from US $5.24 |
||
| replacement | |||||
|
26
|
26
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $5.68 |
||
|
27
|
27
903-87203-46-00
Collar (102-17462-00)
102-17462-00 |
903-87203-46-00 |
— | ||
|
28
|
28
93822-15065-00 Sprocket,drive 15T(1741746150)15T1741746150 |
93822-15065-00 |
from US $20.26 |
||
|
28
|
28
93822-14037-00 Sprocket, Drive (5N0-17461-40-05N0-17461-40-0 |
93822-14037-00 |
from US $17.71 |
||
| replacement | |||||
|
28
|
28
938-22140-43-00 Sprocket, Drive (5N0-17461-40-05N0-17461-40-0 |
938-22140-43-00 |
from US $24.68 |
||
|
28
|
28
938-22160-93-00 Sprocket,drive 16T(116T1 |
938-22160-93-00 |
from US $20.95 |
||
| replacement | |||||
|
28
|
28
938-22160-95-00 Sprocket,drive 16T(10V1746160)16T1 |
938-22160-95-00 |
from US $23.29 |
||
|
29
|
29
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
29
|
29
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
30
|
30
90179-16018-00 Nut |
90179-16018-00 |
from US $2.36 |
||
| replacement | |||||
|
30
|
30
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $7.49 |
||
