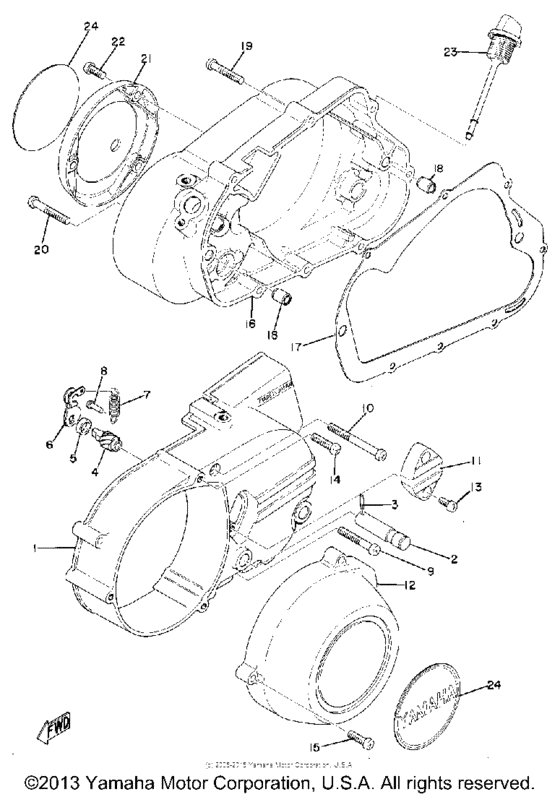

Crankcase cover Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-15410-00-00
Crcs Cover Assembly Lass''y, Le
LE |
337-15410-00-00 |
— | ||
|
2
|
2
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
2
|
2
307-18188-00-00
Axle, Pawl Holder
|
307-18188-00-00 |
— | ||
|
3
|
3
916-09300-22-00
Pin, Spring
|
916-09300-22-00 |
— | ||
|
4
|
4
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
5
|
5
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2.36 |
||
|
6
|
6
241-16342-00-00 Lever, Push |
241-16342-00-00 |
from US $2.36 |
||
|
7
|
7
90506-10019-00 Spring, Tension (132-16345-00)132-16345-00 |
90506-10019-00 |
from US $2.41 |
||
|
8
|
8
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
9
|
9
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
10
|
10
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.42 |
||
|
11
|
11
337-15417-00-00
Cover, Cap
|
337-15417-00-00 |
— | ||
|
12
|
12
337-15415-00-00
Cover, Generator
|
337-15415-00-00 |
— | ||
|
13
|
13
98516-05012-00 Screw, Pan Head |
98516-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
13
|
13
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
13
|
13
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
14
|
14
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
15
|
15
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
15
|
15
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
16
|
16
337-15421-00-00
Cover, Crankcase R
|
337-15421-00-00 |
— | ||
|
17
|
17
237-15324-00-00
Gasket,crankcase 2
|
237-15324-00-00 |
— | ||
| replacement | |||||
|
17
|
17
237-15324-09-00
ROD,PUSH 2
|
237-15324-09-00 |
— | ||
|
18
|
18
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
18
|
18
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
18
|
18
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
19
|
19
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
21
|
21
337-15416-00-00
Cover, Oil Pump
|
337-15416-00-00 |
— | ||
|
22
|
22
92506-06014-00 Screw, Pan Head |
92506-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
23
|
23
307-15363-00-00
Plug, Oil
|
307-15363-00-00 |
— | ||
|
24
|
24
307-15425-00-00
Cover, Generator R
|
307-15425-00-00 |
— | ||
