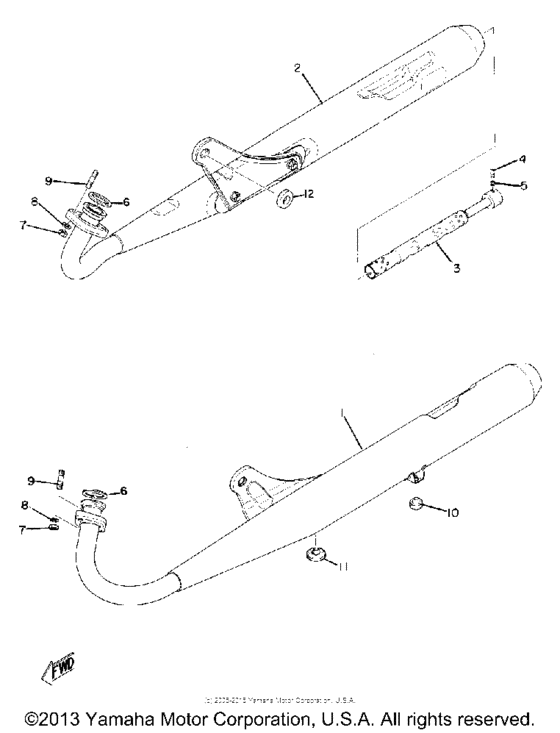

Exhaust Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-14610-00-00
Exhaust Pipe Assembly L
|
337-14610-00-00 |
— | ||
|
2
|
2
337-14620-00-00
Exhaust Pipe Assembly R
|
337-14620-00-00 |
— | ||
|
3
|
3
293-14753-01-00 Silencer, Exhaust |
293-14753-01-00 |
US $72.85 |
||
|
4
|
4
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.99 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
9
|
9
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $10.20 |
||
| replacement | |||||
|
9
|
9
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $10.20 |
||
|
10
|
10
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
|
11
|
11
256-27314-00-00
Stopper
|
256-27314-00-00 |
— | ||
|
12
|
12
337-14779-00-00
Collar
|
337-14779-00-00 |
— | ||
