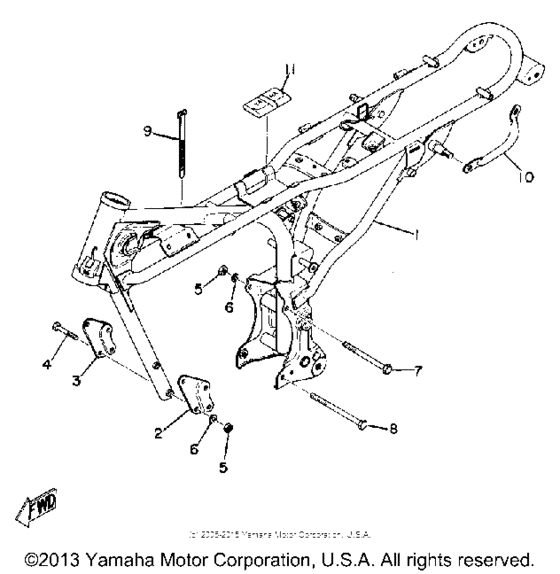

Frame Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-21110-00-33
Frame
|
337-21110-00-33 |
— | ||
|
2
|
2
337-21315-00-00
Stay, Engine 2
|
337-21315-00-00 |
— | ||
|
3
|
3
337-21316-00-00
Stay, Engine 3
|
337-21316-00-00 |
— | ||
|
4
|
4
958-11080-60-00
Bolt, Flange
|
958-11080-60-00 |
— | ||
| replacement | |||||
|
4
|
4
958-17080-60-00 Bolt, Flange |
958-17080-60-00 |
from US $1.07 |
||
|
5
|
5
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
90109-08386-00 Bolt |
90109-08386-00 |
from US $7.79 |
||
|
8
|
8
901-01081-03-00 Bolt |
901-01081-03-00 |
from US $3.85 |
||
| replacement | |||||
|
8
|
8
90101-08286-00 Bolt |
90101-08286-00 |
from US $7.79 |
||
|
8
|
8
90101-08286-00 Bolt |
90101-08286-00 |
from US $7.79 |
||
|
9
|
9
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
10
|
10
337-21165-00-93
Handle, Standing
|
337-21165-00-93 |
— | ||
|
11
|
11
396-28100-10-00
Tool Kit
|
396-28100-10-00 |
— | ||
| replacement | |||||
|
11
|
11
1E7-W2810-00-00
Tool Kit
|
1E7-W2810-00-00 |
— | ||
