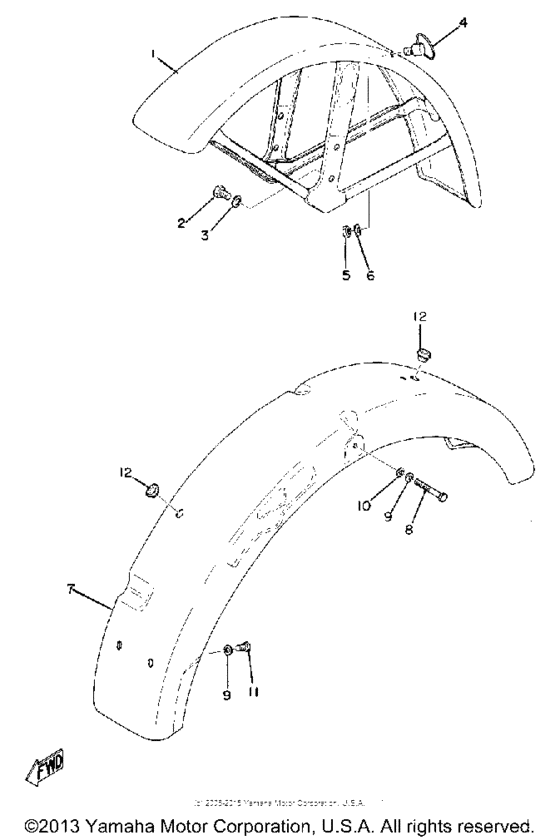

Front fender - rear fender Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-21510-00-93
Fender, Front
|
337-21510-00-93 |
— | ||
|
2
|
2
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
2
|
2
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
2
|
2
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
4
|
4
174-21518-00-00 Holder, Cable |
174-21518-00-00 |
US $12.89 |
||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
337-21610-00-93
Fender, Rear
|
337-21610-00-93 |
— | ||
|
8
|
8
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
8
|
8
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.94 |
||
