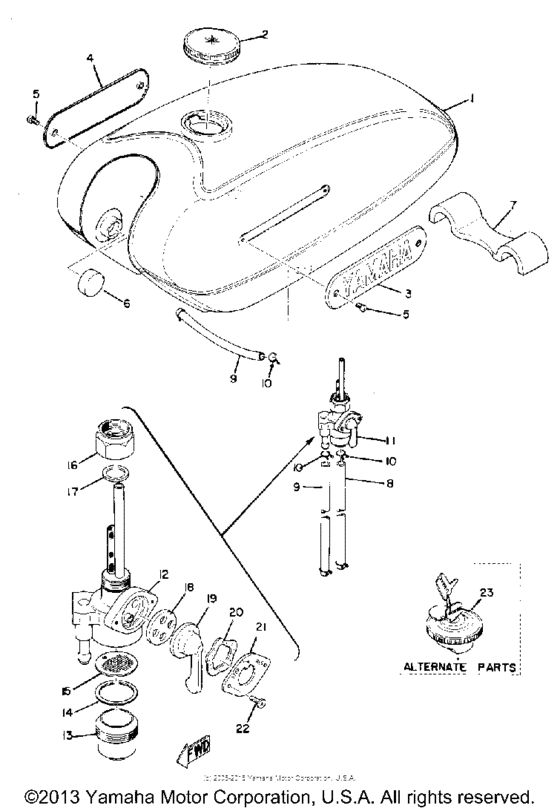

Fuel tank Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
307-24110-00-X4
Fuel Tank
|
307-24110-00-X4 |
— | ||
|
2
|
2
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
3
|
3
307-24161-00-00
Emblem 1
|
307-24161-00-00 |
— | ||
|
4
|
4
307-24162-00-00
Emblem 2
|
307-24162-00-00 |
— | ||
|
5
|
5
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
6
|
6
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
7
|
7
307-24182-00-00
Damper, Locating 2
|
307-24182-00-00 |
— | ||
|
8
|
8
90445-09073-00 Hose (L420) |
90445-09073-00 |
from US $6.52 |
||
| replacement | |||||
|
8
|
8
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
9
|
9
904-45090-89-00
Hose (L420)
|
904-45090-89-00 |
— | ||
| replacements | |||||
|
9
|
9
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
9
|
9
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
10
|
10
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
11
|
11
132-24500-02-00
Fuel Cock Assembly 1
|
132-24500-02-00 |
— | ||
|
13
|
13
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
14
|
14
132-24522-00-00 Gasket |
132-24522-00-00 |
from US $17.71 |
||
| replacement | |||||
|
14
|
14
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
15
|
15
304-24515-00-00
Net, Filter 2
|
304-24515-00-00 |
— | ||
|
16
|
16
132-24531-00-00
Nut
|
132-24531-00-00 |
— | ||
|
17
|
17
434-24532-00-00 Gasket |
434-24532-00-00 |
from US $5.53 |
||
|
18
|
18
137-24523-00-00 Petcock Packing Valve |
137-24523-00-00 |
from US $8.36 |
||
|
19
|
19
168-24524-00-00
Lever, Cock
|
168-24524-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
21
|
21
132-24525-01-00
Plate, Lvr Fitting
|
132-24525-01-00 |
— | ||
|
22
|
22
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
23
|
23
127-24650-02-00 Cap Assy |
127-24650-02-00 |
US $87.87 |
||
| replacement | |||||
|
23
|
23
127-24650-10-00 Cap Assy |
127-24650-10-00 |
US $74.43 |
||
