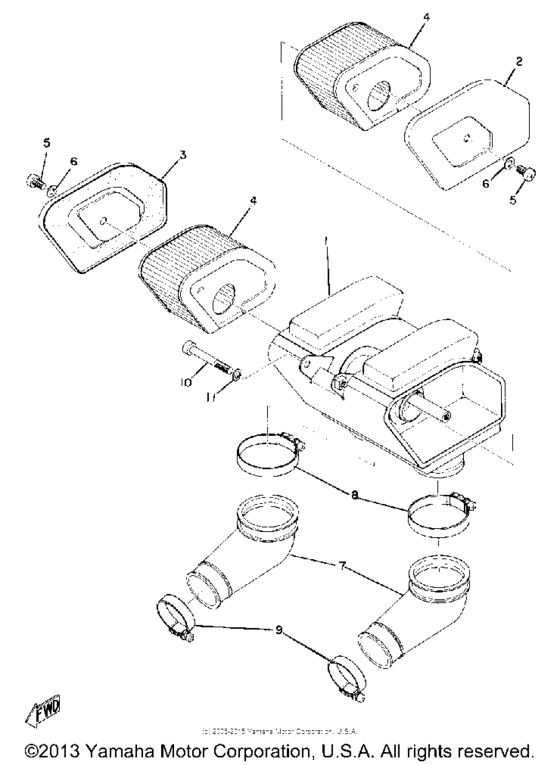

Intake Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-14411-00-33
Case, Air Cleaner 1
|
337-14411-00-33 |
— | ||
|
2
|
2
307-14412-00-33
Cap, Cleaner Case 1
|
307-14412-00-33 |
— | ||
|
3
|
3
307-14422-00-33
Cap, Cleaner Case 2
|
307-14422-00-33 |
— | ||
|
4
|
4
337-14451-00-00
Element, Air Clnr
|
337-14451-00-00 |
— | ||
|
5
|
5
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
337-14453-00-00
Joint, Air Clnr 1
|
337-14453-00-00 |
— | ||
|
8
|
8
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
9
|
9
904-60370-51-00 Clamp, Hose |
904-60370-51-00 |
US $4.53 |
||
|
10
|
10
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
