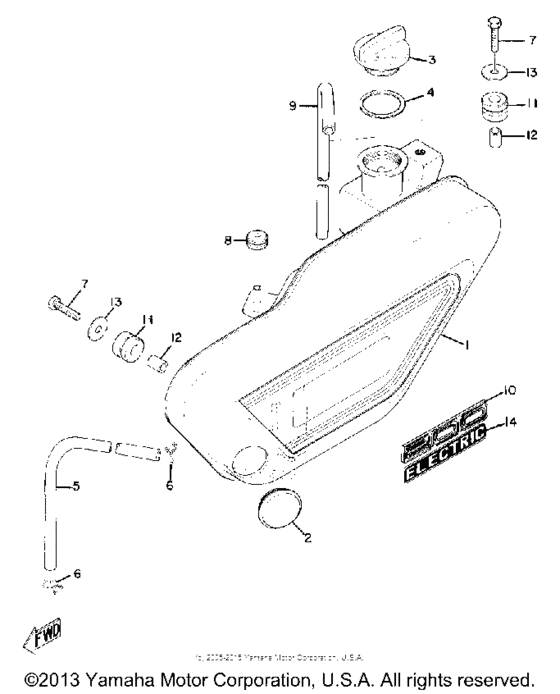

Oil tank Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-21705-00-34
Oil Tank Assembly
|
337-21705-00-34 |
— | ||
|
2
|
2
214-21761-00-00 Gauge, Level |
214-21761-00-00 |
from US $19.41 |
||
|
3
|
3
214-21771-00-00 Body, Cap |
214-21771-00-00 |
from US $30.58 |
||
| replacement | |||||
|
3
|
3
1A0-21771-00-00 Body, Cap |
1A0-21771-00-00 |
from US $36.75 |
||
|
4
|
4
90430-29114-00 Gasket |
90430-29114-00 |
from US $2.83 |
||
|
5
|
5
90445-09226-00 Hose (L420) |
90445-09226-00 |
from US $6.52 |
||
| replacements | |||||
|
5
|
5
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
5
|
5
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
6
|
6
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
7
|
7
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
90480-10091-00 Grommet (214-21746-00)214-21746-00 |
90480-10091-00 |
from US $2.83 |
||
|
9
|
9
90445-08047-00 Hose (L1500) |
90445-08047-00 |
from US $10.91 |
||
| replacement | |||||
|
9
|
9
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
10
|
10
337-21786-00-34
Emblem 6
|
337-21786-00-34 |
— | ||
|
11
|
11
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
12
|
12
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
90387-06026-00 Collar |
90387-06026-00 |
from US $1.66 |
||
|
13
|
13
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
320-21787-00-00
Emblem 7
|
320-21787-00-00 |
— | ||
