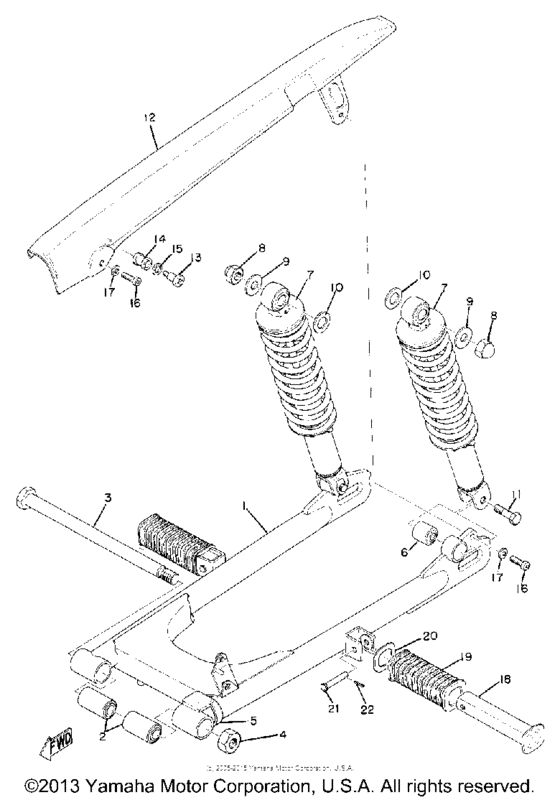

Rear arm - rear cushion - chain case Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
337-22110-00-33
Rear Arm
|
337-22110-00-33 |
— | ||
|
2
|
2
174-22123-00-00
Bush 1
|
174-22123-00-00 |
— | ||
|
3
|
3
337-22141-00-00
Shaft, Pivot
|
337-22141-00-00 |
— | ||
|
4
|
4
95312-14600-00 Nut |
95312-14600-00 |
from US $8.15 |
||
| replacement | |||||
|
4
|
4
95337-14600-00 Nut |
95337-14600-00 |
from US $10.02 |
||
|
5
|
5
173-22151-00-00 Seal, Guard |
173-22151-00-00 |
US $5.53 |
||
|
6
|
6
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
7
|
7
337-22210-20-00
Shk/abs Assembly, Rear
|
337-22210-20-00 |
— | ||
|
8
|
8
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
8
|
8
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
9
|
9
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
9
|
9
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
10
|
10
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $2.08 |
||
|
11
|
11
90106-08027-00 Bolt, Dome Head |
90106-08027-00 |
from US $5.10 |
||
|
12
|
12
337-22311-00-93
No Longer Available
|
337-22311-00-93 |
— | ||
|
13
|
13
90149-06012-00
Screw, Spec''l Shape
|
90149-06012-00 |
— | ||
|
14
|
14
183-22332-01-00
Damper, Chain Case
|
183-22332-01-00 |
— | ||
|
15
|
15
902-01070-79-00 Washer, Plate |
902-01070-79-00 |
US $1.70 |
||
|
16
|
16
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
168-27431-10-00
Footrest, Rear 1
|
168-27431-10-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
307-27433-00-00
Cover, Rr Footrest
RR FOOTREST |
307-27433-00-00 |
— | ||
|
20
|
20
902-09210-31-00 Washer, Spec''l Shap |
902-09210-31-00 |
US $2.41 |
||
|
21
|
21
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.98 |
||
|
22
|
22
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
