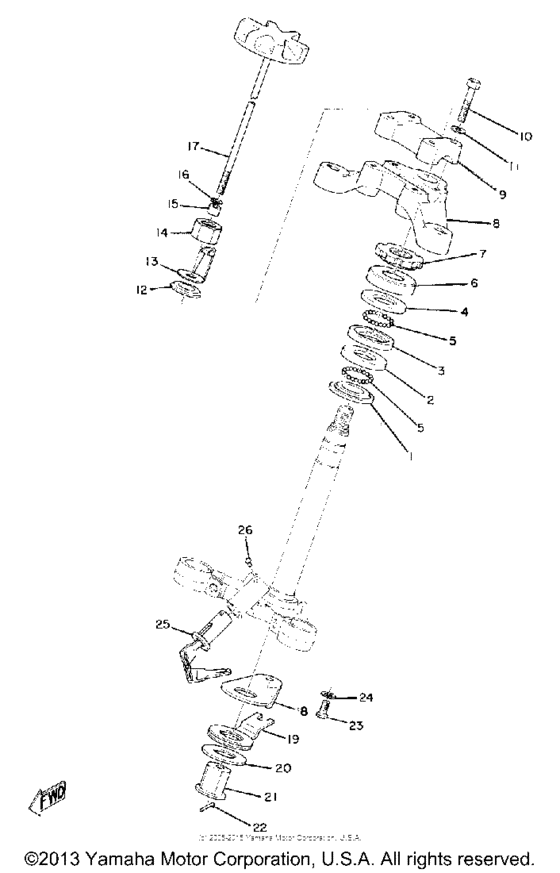

Steering Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
3
|
3
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
3
|
3
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
3
|
3
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
4
|
4
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
5
|
5
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
6
|
6
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
7
|
7
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
7
|
7
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
7
|
7
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
8
|
8
337-23435-00-98
Crown, Handle
|
337-23435-00-98 |
— | ||
|
9
|
9
164-23441-00-38
Holder Handle Upr
|
164-23441-00-38 |
— | ||
| replacement | |||||
|
9
|
9
164-23441-01-38
HANDLE,HOLDER
|
164-23441-01-38 |
— | ||
|
10
|
10
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
10
|
10
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
12
|
12
902-09170-57-00
Washer, Spec''l Shap
|
902-09170-57-00 |
— | ||
|
13
|
13
246-23428-00-00
Spring
|
246-23428-00-00 |
— | ||
|
14
|
14
95303-16600-00
Nut (95301-16600)
95301-16600 |
95303-16600-00 |
— | ||
|
15
|
15
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
16
|
16
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
17
|
17
307-23419-00-00
Shaft, Damper
|
307-23419-00-00 |
— | ||
|
18
|
18
174-23421-00-00
Plate, Damper 1
|
174-23421-00-00 |
— | ||
|
19
|
19
183-23422-00-00
Plate, Damper 2
|
183-23422-00-00 |
— | ||
|
20
|
20
174-23425-00-00
Damper, Friction
|
174-23425-00-00 |
— | ||
|
21
|
21
901-79060-32-00
Nut, Spec''l Shape
174-23453- |
901-79060-32-00 |
— | ||
|
22
|
22
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
23
|
23
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
23
|
23
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
122-23480-01-00
Steering Lock Assembly
|
122-23480-01-00 |
— | ||
|
26
|
26
122-23483-00-00
Rivet
|
122-23483-00-00 |
— | ||
