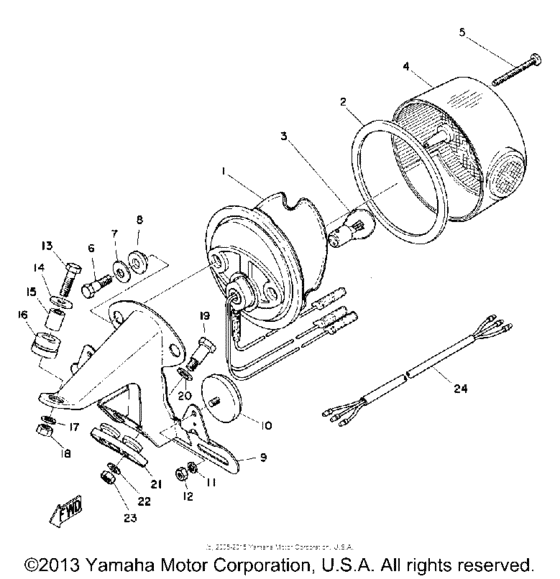

Tail lamp Diagram Yamaha CS3/ CS5
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 500
- Model
- CS5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
256-84710-61-00
Taillight Unit Assembly
|
256-84710-61-00 |
— | ||
|
1
|
1
275-84511-61-00
Base, Taillight
|
275-84511-61-00 |
— | ||
|
2
|
2
275-84523-60-00
Gasket, Lens
|
275-84523-60-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
3
|
3
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
|
4
|
4
275-84521-60-00
Lens, Taillight
|
275-84521-60-00 |
— | ||
|
5
|
5
98501-04050-00 Screw, Pan Head (5A8) |
98501-04050-00 |
from US $1.49 |
||
| replacement | |||||
|
5
|
5
98507-04050-00 Screw, Pan Head |
98507-04050-00 |
from US $3.40 |
||
|
6
|
6
479-84526-00-00
Screw
|
479-84526-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
8
|
8
275-84527-60-00
Damper
|
275-84527-60-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
237-83523-00-00 Damper |
237-83523-00-00 |
from US $11.39 |
||
|
10
|
10
90209-05029-00 Washer, Spec''l Shap (214-83524Washer (214-83524-00) 214-83524 |
90209-05029-00 |
from US $4.25 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
13
|
13
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.91 |
||
|
14
|
14
90209-06095-00 Washer |
90209-06095-00 |
from US $1.84 |
||
| replacement | |||||
|
14
|
14
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
15
|
15
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
90387-06026-00 Collar |
90387-06026-00 |
from US $1.66 |
||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
19
|
19
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
20
|
20
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
337-84753-00-00
Damper
|
337-84753-00-00 |
— | ||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
24
|
24
214-84517-00-00
Cord, Taillight
|
214-84517-00-00 |
— | ||
