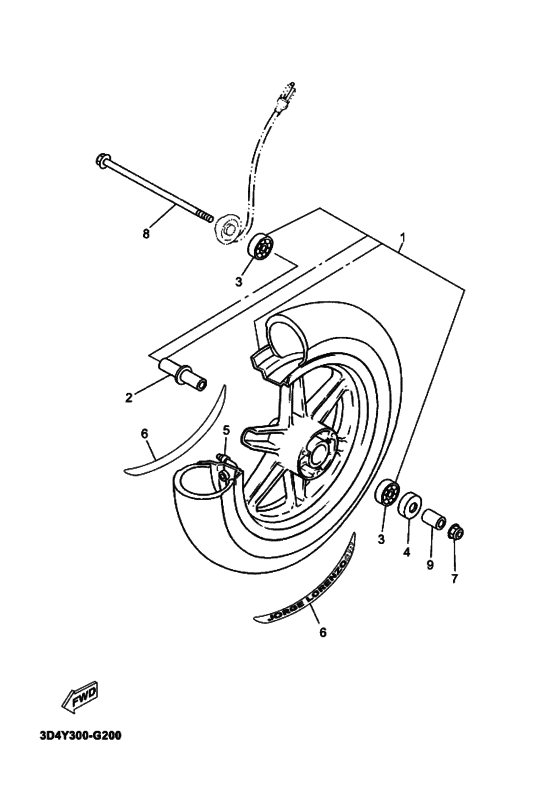

Front wheel Diagram Yamaha CS50 Jog RR
- Year
- 2008
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 3D4Y
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CS50Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5RW-F5160-20-00
Cast Wheel, Front
|
5RW-F5160-20-00 |
— | ||
|
2
|
2
5RW-F5117-00-00
Spacer, Bearing
|
5RW-F5117-00-00 |
— | ||
|
3
|
3
93306-300Y8-00 Bearing(GRIMECA) |
93306-300Y8-00 |
from US $25.64 |
||
|
4
|
4
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
5
|
5
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
6
|
6
3D4-F531B-L0-00
Emblem, Wheel
|
3D4-F531B-L0-00 |
— | ||
|
7
|
7
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
7
|
7
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
8
|
8
5RW-F5181-00-00
Axle, Wheel
|
5RW-F5181-00-00 |
— | ||
|
9
|
9
90387-10865-00
Collar
|
90387-10865-00 |
— | ||
