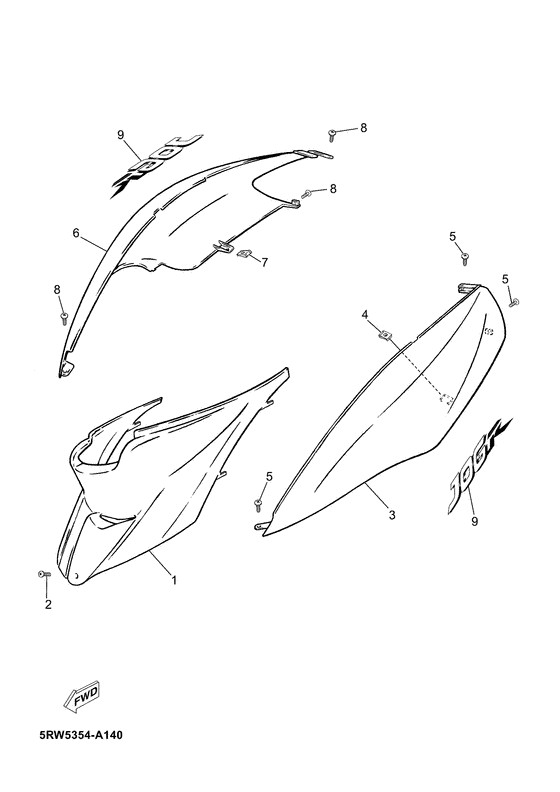

Side cover Diagram Yamaha CS50 Jog R
- Year
- 2002
- Colour
- White Metallic 3 (WM3; 0792)
- Model code
- 5RW5
- Sales region
- Italy (010)
- Engine Capacity
- 50
- Model
- CS50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RW-F1711-00-00
Cover, Side 1
|
5RW-F1711-00-00 |
— | ||
|
02
|
02
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
03
|
03
5RW-F1721-00-P0
Cover, Side 2
Ur wm3 |
5RW-F1721-00-P0 |
— | ||
|
03
|
03
5RW-F1721-00-P1
Cover, Side 2
Ur lnmj |
5RW-F1721-00-P1 |
— | ||
|
04
|
04
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
05
|
05
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
06
|
06
5RW-F1731-00-P0
Cover, Side 3
Ur wm3 |
5RW-F1731-00-P0 |
— | ||
|
06
|
06
5RW-F1731-00-P1
Cover, Side 3
Ur lnmj |
5RW-F1731-00-P1 |
— | ||
|
07
|
07
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
08
|
08
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
09
|
09
5RW-F1781-00-00
Emblem 1
Ur wm3 |
5RW-F1781-00-00 |
— | ||
|
09
|
09
5RW-F1781-10-00
Emblem 1
Ur lnmj |
5RW-F1781-10-00 |
— |
