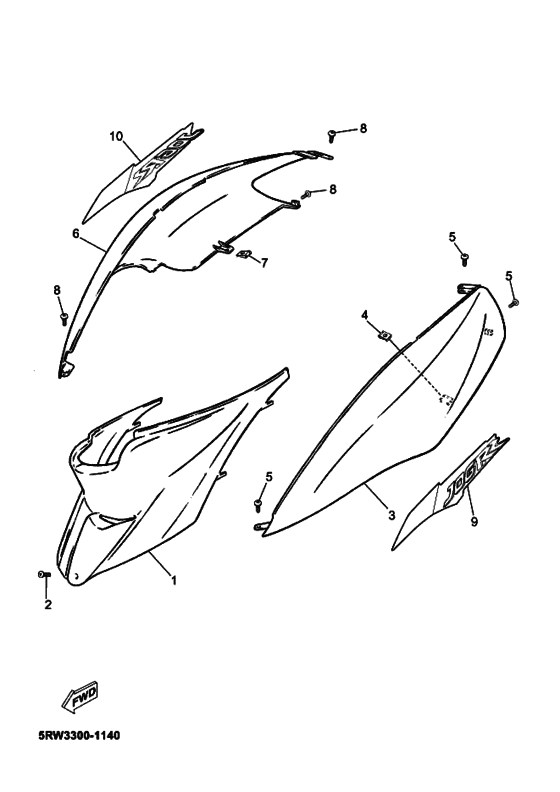

Side cover Diagram Yamaha CS50 Jog RR
- Year
- 2003
- Colour
- Red Cocktail 2 (RC2; 0837)
- Model code
- 5RW9
- Sales region
- Europe (050)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CS50Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5RW-F1711-00-00
Cover, Side 1
|
5RW-F1711-00-00 |
— | ||
|
2
|
2
90167-04X02-00
Screw, Tapping
|
90167-04X02-00 |
— | ||
|
3
|
3
5RW-F1721-00-P2
Cover, Side 2
UR RC2 |
5RW-F1721-00-P2 |
— | ||
|
4
|
4
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
5
|
5
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
6
|
6
5RW-F1731-00-P2
Cover, Side 3
UR RC2 |
5RW-F1731-00-P2 |
— | ||
|
7
|
7
5DS-F8317-00-00
Nut, Spring
|
5DS-F8317-00-00 |
— | ||
|
8
|
8
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
|
9
|
9
5RW-F1785-00-00
Emblem 5
UR |
5RW-F1785-00-00 |
— | ||
|
10
|
10
5RW-F1786-00-00
Emblem 6
UR |
5RW-F1786-00-00 |
— |
