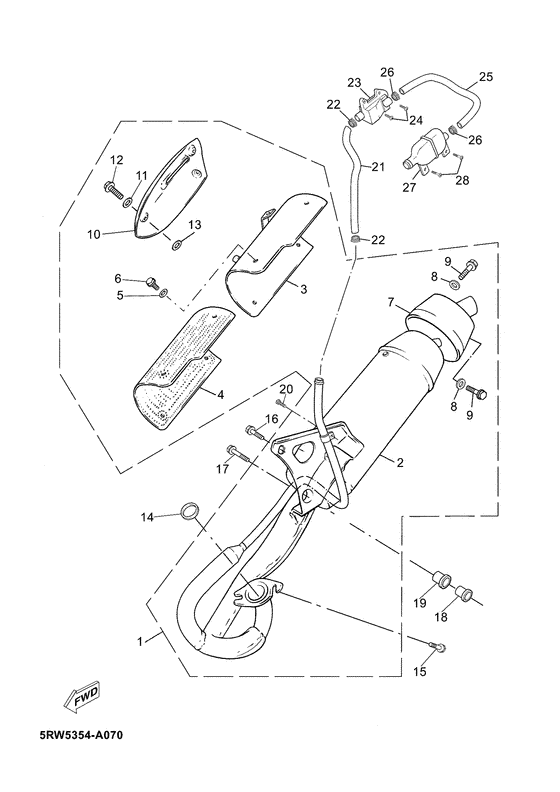

Exhaust Diagram Yamaha CS50 Jog R
- Year
- 2003
- Colour
- White Metallic 3 (WM3; 0792)
- Sales region
- Italy (010)
- Engine Capacity
- 50
- Model
- CS50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RW-E4602-20-00
Exhaust Pipe Comp
|
5RW-E4602-20-00 |
— | ||
|
02
|
02
5RN-E4610-01-00
Exhaust Pipe Assy 1
|
5RN-E4610-01-00 |
— | ||
|
03
|
03
5RW-E4718-00-00
Protector, Muffler 1
|
5RW-E4718-00-00 |
— | ||
|
04
|
04
5BW-E4728-00-00
Protector, Muffler 2
|
5BW-E4728-00-00 |
— | ||
|
05
|
05
9290M-06600-00 Washer |
9290M-06600-00 |
from US $0.29 |
||
|
06
|
06
9890M-06008-00
Screw, Bind
|
9890M-06008-00 |
— | ||
|
07
|
07
5RN-E4728-00-00
Protector, Muffler 2
|
5RN-E4728-00-00 |
— | ||
|
08
|
08
9290M-06600-00 Washer |
9290M-06600-00 |
from US $0.29 |
||
|
09
|
09
9131M-06012-00 Bolt |
9131M-06012-00 |
from US $1.35 |
||
|
10
|
10
5RW-E4729-00-00
Emblem, Protector
|
5RW-E4729-00-00 |
— | ||
|
11
|
11
9290M-06600-00 Washer |
9290M-06600-00 |
from US $0.29 |
||
|
12
|
12
9890M-06012-00 Screw, Bind |
9890M-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
13
|
13
5BW-E4766-00-00
Washer, Protector
|
5BW-E4766-00-00 |
— | ||
|
14
|
14
5AD-E4613-00-00 Gasket, Exhaust Pi |
5AD-E4613-00-00 |
US $9.15 |
||
|
15
|
15
90149-06X04-00
Screw
|
90149-06X04-00 |
— | ||
|
16
|
16
9581M-08020-00 Bolt, Flange |
9581M-08020-00 |
US $0.85 |
||
|
17
|
17
9581M-08030-00
Bolt, Flange
|
9581M-08030-00 |
— | ||
|
18
|
18
4MJ-E4445-00-00 Grommet |
4MJ-E4445-00-00 |
from US $2.83 |
||
|
19
|
19
4MJ-E4779-00-00 Collar |
4MJ-E4779-00-00 |
US $4.39 |
||
| replacement | |||||
|
19
|
19
5EU-E4779-00-00 Collar |
5EU-E4779-00-00 |
from US $4.39 |
||
|
20
|
20
5RN-E4651-00-00
Bolt
|
5RN-E4651-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
5RW-E4881-00-00
Hose, Bend 1
|
5RW-E4881-00-00 |
— | ||
|
22
|
22
90467-16X00-00
Clip
|
90467-16X00-00 |
— | ||
|
23
|
23
5FC-14803-00-00 Air Induction System Assy |
5FC-14803-00-00 |
US $79.72 |
||
| replacement | |||||
|
23
|
23
5WW-E4803-10-00
Air Induction System Assy
|
5WW-E4803-10-00 |
— | ||
|
24
|
24
9850M-06012-00 Screw, Pan Head |
9850M-06012-00 |
US $1.56 |
||
|
25
|
25
5RW-E4987-00-00
Hose
|
5RW-E4987-00-00 |
— | ||
|
26
|
26
90467-16X00-00
Clip
|
90467-16X00-00 |
— | ||
|
27
|
27
5RJ-E4806-00-00
Air Filter
|
5RJ-E4806-00-00 |
— | ||
|
28
|
28
90167-04X00-00
Screw, Tapping
|
90167-04X00-00 |
— | ||
