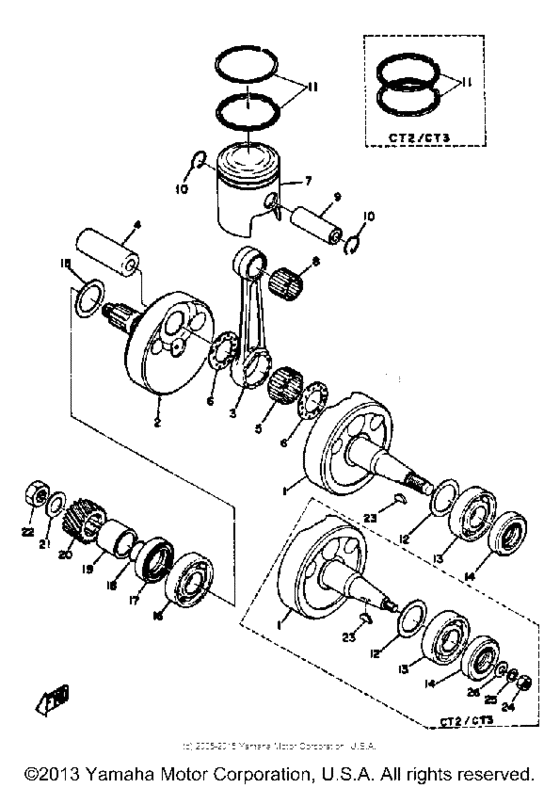

Crank piston Diagram Yamaha CT CT2
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- CT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
452-11412-00-00
Crank 1
|
452-11412-00-00 |
— | ||
|
1
|
1
261-11400-60-00
Crankshaft Assembly
|
261-11400-60-00 |
— | ||
|
1
|
1
316-11412-60-00
Crank 1
|
316-11412-60-00 |
— | ||
|
2
|
2
248-11422-00-00
Crank 2
|
248-11422-00-00 |
— | ||
|
2
|
2
314-11400-02-00
Crankshaft Assembly
|
314-11400-02-00 |
— | ||
|
3
|
3
3R2-11651-01-00
Rod, Connecting
|
3R2-11651-01-00 |
— | ||
|
4
|
4
3M5-11681-00-00 Pin, Crank 1 |
3M5-11681-00-00 |
from US $9.78 |
||
|
5
|
5
933-10422-77-00
Bearing, Cylinder
|
933-10422-77-00 |
— | ||
| replacement | |||||
|
5
|
5
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $25.92 |
||
|
6
|
6
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
7
|
7
316-11631-00-96
Piston Std
|
316-11631-00-96 |
— | ||
|
7
|
7
316-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
316-11636-00-00 |
— | ||
|
7
|
7
316-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
316-11635-00-00 |
— | ||
|
7
|
7
314-11631-00-96
Piston Std
|
314-11631-00-96 |
— | ||
|
7
|
7
314-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
314-11636-00-00 |
— | ||
|
7
|
7
314-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
314-11635-00-00 |
— | ||
|
8
|
8
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $28.57 |
||
|
8
|
8
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $11.62 |
||
|
9
|
9
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
9
|
9
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.22 |
||
|
9
|
9
251-11633-00-00 Pin, Piston |
251-11633-00-00 |
from US $10.10 |
||
|
10
|
10
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
11
|
11
316-11610-00-00
Piston Ringset Std
|
316-11610-00-00 |
— | ||
|
11
|
11
316-11610-10-00
Piston Ringset 1St
1ST ALT. PART |
316-11610-10-00 |
— | ||
|
11
|
11
316-11610-20-00
Piston Ringset 2Nd
2ND ALT. PART |
316-11610-20-00 |
— | ||
|
11
|
11
314-11610-00-00
Piston Ringset Std
|
314-11610-00-00 |
— | ||
|
11
|
11
314-11610-10-00
Piston Ringset 1St
1ST |
314-11610-10-00 |
— | ||
|
11
|
11
314-11610-20-00
Piston Ringset 2Nd
2ND |
314-11610-20-00 |
— | ||
|
12
|
12
132-11561-00-03
Shim, Crank 1
|
132-11561-00-03 |
— | ||
|
13
|
13
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $17.18 |
||
|
14
|
14
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $6.66 |
||
|
15
|
15
136-11561-00-04
Shim, Crank 1
U.R. |
136-11561-00-04 |
— | ||
|
15
|
15
136-11561-00-03
Shim, Crank 1
U.R. |
136-11561-00-03 |
— | ||
|
15
|
15
136-11561-00-05
Shim, Crank 1
U.R. |
136-11561-00-05 |
— | ||
|
15
|
15
136-11561-00-06
Shim, Crank 1
U.R. |
136-11561-00-06 |
— | ||
|
15
|
15
136-11561-00-07
Shim, Crank 1
U.R. |
136-11561-00-07 |
— | ||
|
16
|
16
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
16
|
16
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $7.49 |
||
|
18
|
18
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
19
|
19
90387-205E9-00 Collar |
90387-205E9-00 |
from US $12.33 |
||
|
20
|
20
248-16111-00-00
Gear, Pri Drive
|
248-16111-00-00 |
— | ||
|
21
|
21
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
21
|
21
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
22
|
22
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
24
|
24
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
25
|
25
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
26
|
26
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
|
26
|
26
316-11631-00-96
Piston Std
|
316-11631-00-96 |
— | ||
|
26
|
26
316-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 |
316-11635-00-00 |
— | ||
|
26
|
26
316-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 |
316-11636-00-00 |
— | ||
|
26
|
26
314-11631-00-96
Piston Std
|
314-11631-00-96 |
— | ||
|
26
|
26
314-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 |
314-11635-00-00 |
— | ||
|
26
|
26
314-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 |
314-11636-00-00 |
— | ||
