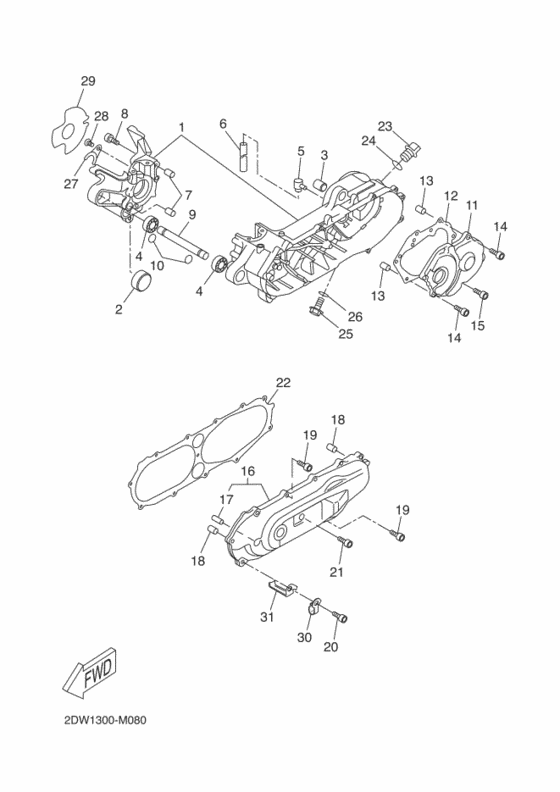

Crankcase Diagram Yamaha CW50 BW'S
- Year
- 2013
- Colour
- Black Metallic 1M (SM1M; 1306)
- Model code
- 2DW1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DW-E5150-00-00
Crankcase Assy
|
2DW-E5150-00-00 |
— | ||
|
2
|
2
2DW-E5189-00-00
Plug
|
2DW-E5189-00-00 |
— | ||
|
3
|
3
4X6-F2216-00-00
Bush, Rear Shock Absorber
|
4X6-F2216-00-00 |
— | ||
| replacement | |||||
|
3
|
3
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $8.60 |
||
|
4
|
4
93306-002X4-00
Bearing
|
93306-002X4-00 |
— | ||
|
5
|
5
37P-E5371-00-00 Breather |
37P-E5371-00-00 |
US $4.39 |
||
|
6
|
6
90446-13311-00 Hose |
90446-13311-00 |
from US $1.40 |
||
| replacement | |||||
|
6
|
6
90446-13803-00 Hose |
90446-13803-00 |
from US $1.37 |
||
|
7
|
7
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
8
|
8
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
9
|
9
3VL-E5317-10-00 Spacer, Engine Mou |
3VL-E5317-10-00 |
from US $19.64 |
||
|
10
|
10
934-1014X-01-00
Circlip
|
934-1014X-01-00 |
— | ||
|
11
|
11
3VL-E5421-10-00 Cover, Crankcase 2 |
3VL-E5421-10-00 |
from US $101.63 |
||
|
12
|
12
3VL-E5461-00-00 Gasket, Crankcase Cover |
3VL-E5461-00-00 |
from US $1.70 |
||
|
13
|
13
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
13
|
13
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
13
|
13
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
14
|
14
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
15
|
15
90110-06X03-00
Bolt, Hexagon Socket Head
(M6X20) |
90110-06X03-00 |
— | ||
| replacement | |||||
|
15
|
15
1TK-E5481-00-00 Bolt, Hexagon Socket HeadBolt 1 (M6X20) |
1TK-E5481-00-00 |
US $2.16 |
||
|
16
|
16
3VL-E5411-10-00 Cover, Crankcase 1(SILVER) |
3VL-E5411-10-00 |
US $317.77 |
||
|
17
|
17
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
18
|
18
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
18
|
18
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
18
|
18
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
19
|
19
901-1006X-88-00
Bolt, Hexagon Socket Head
|
901-1006X-88-00 |
— | ||
|
20
|
20
901-1006X-89-00
Bolt, Hexagon Socket Head
|
901-1006X-89-00 |
— | ||
|
21
|
21
901-1006X-90-00
Bolt, Hexagon Socket Head
|
901-1006X-90-00 |
— | ||
|
22
|
22
3VL-E5451-00-00 Gasket, Crankcase Cover |
3VL-E5451-00-00 |
from US $15.70 |
||
|
23
|
23
3VL-E5363-00-00 Plug, Oil |
3VL-E5363-00-00 |
from US $4.52 |
||
|
24
|
24
93210-14X01-00
O-Ring
|
93210-14X01-00 |
— | ||
|
25
|
25
90105-08X04-00 Bolt, Flange |
90105-08X04-00 |
from US $1.21 |
||
| replacements | |||||
|
25
|
25
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
|
25
|
25
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
26
|
26
90430-08X00-00
Gasket
|
90430-08X00-00 |
— | ||
|
27
|
27
3VL-E5128-00-00 Holder |
3VL-E5128-00-00 |
from US $6.66 |
||
|
28
|
28
901-1006X-82-00 Bolt, Hexagon Socket Head |
901-1006X-82-00 |
US $3.06 |
||
|
29
|
29
3VL-E5462-00-00 Gasket, Crankcase Cover |
3VL-E5462-00-00 |
from US $10.20 |
||
|
30
|
30
90465-08X00-00 Clamp |
90465-08X00-00 |
from US $4.11 |
||
| replacement | |||||
|
30
|
30
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
31
|
31
4SB-F1238-00-00 Bracket |
4SB-F1238-00-00 |
from US $17.57 |
||
